CEILING / TINDRA SQUARE
TINDRA SQUARE
APPLICATION
LED high-performance downlight with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Made of aluminium die cast and extrusion
Aluminium and stainless steel.
Clear 6mm safety glass
Silicon base seal gasket
Electrostatic powder coating.
Lens angle 25°- 40°- 60°- 80°
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 100 – 240V AC 50 / 60 Hz
Power factor > 87% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP67
Impact strenght IK09
Operation temperature -25°C / +55°C
Weight: 1,87 kg
Complies with European standards
EN 60598 and CE certificate.

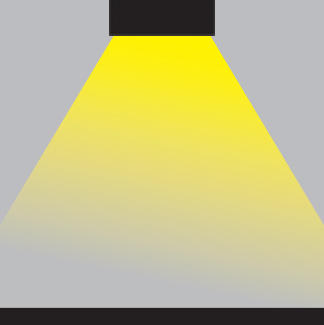

-- Conformity mark.LIGHT DISTRIBUTION

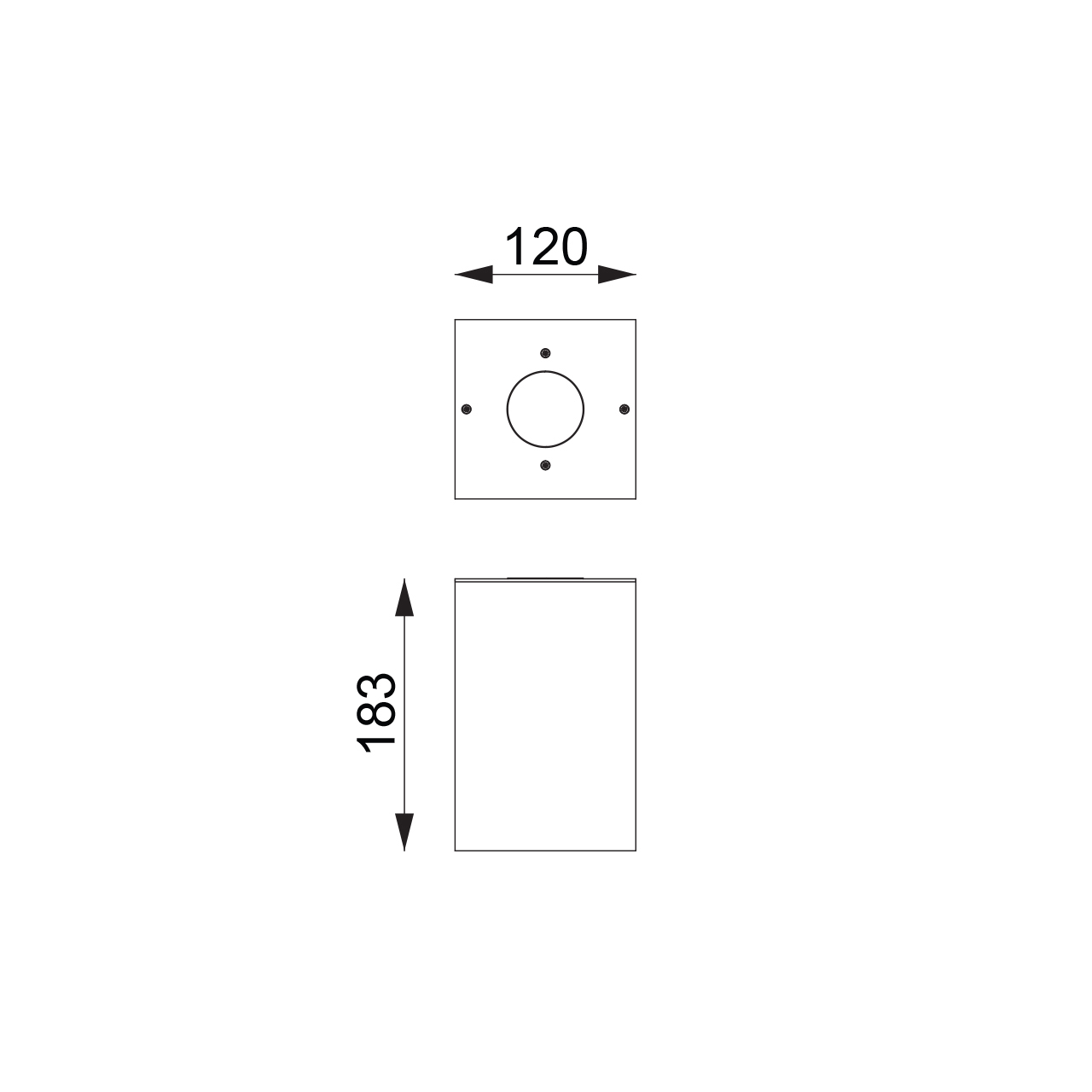

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
14-04-04-03-XX-X
4W
205lm - 220lm
3000K-4000K
XX: Lens Angle , X: Led Color

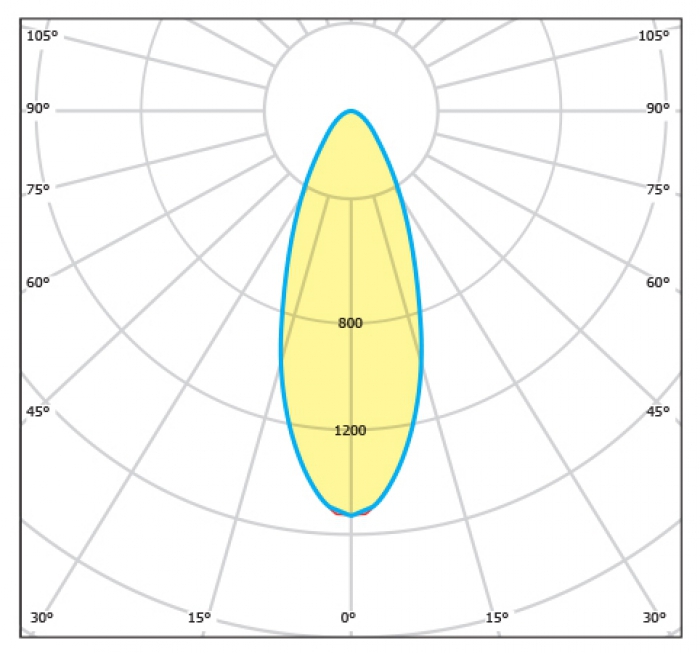

LIGHT CURVES
25°
