DATA SHEETS
FLOODLIGHTS / TETRA PRL-1
TETRA PRL-1
Product Description
| Housing material | Aluminium die-cast |
| Lens material | PMMA |
| Light distribution | 8°-15°-30°-60°-90°-30°x96° |
| Input Voltage | 100-305 V AC |
| Power factor (min.) | 0.92 |
| Dimmable (optional) | 1-10V, DALI |
| Protection class | IP66 |
| Impact protection | IK09 |
| Net weight | 6 kg |
| Certificate | EN 60598, CE |

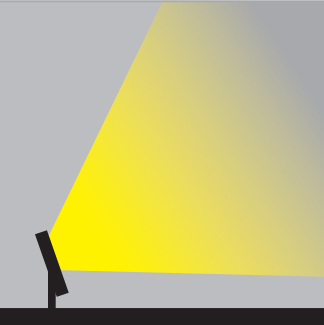

LIGHT DISTRIBUTION

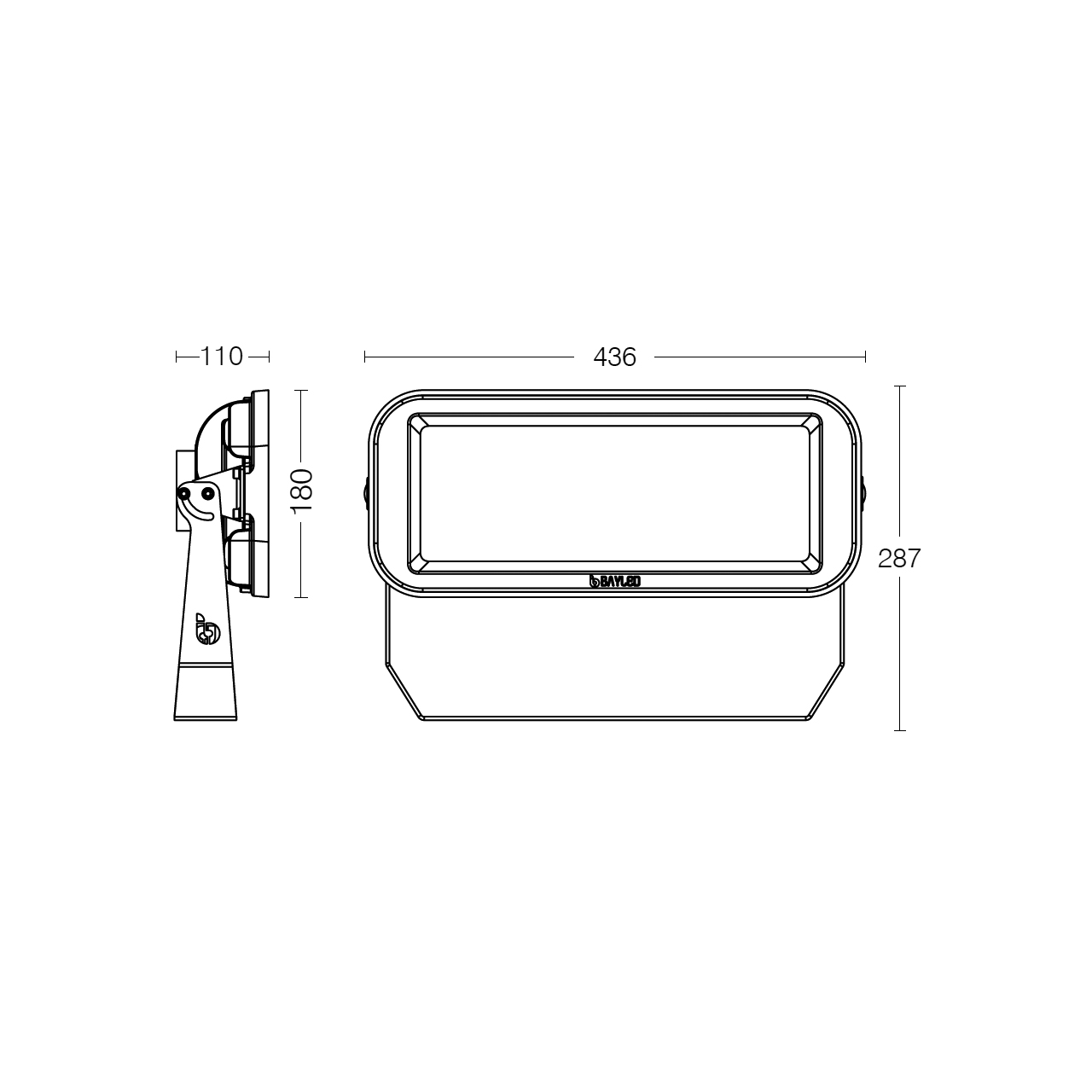

TECHNICAL DRAWING
PURCHASE ORDER TABLE
128 LED - MID POWER LED / STANDART LUMEN OUTPUT (Beam angle options: 15°-40°-60°-90°-30°x96°)
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
45-10-90-128-XX-X
90W
12409lm - 13058lm
3000K-4000K
45-10-120-128-XX-X
120W
15621lm - 16438lm
3000K-4000K
192 LED - MID POWER LED / HIGH LUMEN OUTPUT (Beam angle options: 30°-60°-90°-143°x50°)
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
45-10-75-192-XX-X
75W
11839m - 12179lm
3000K-4000K
45-10-100-192-XX-X
100W
15329lm - 15769lm
3000K-4000K
288 LED - MID POWER LED / EXTRA HIGH LUMEN OUTPUT (Beam angle options: 22°-30°-60°-90° - Asym.)
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
45-10-75-288-XX-X
75W
12414lm - 12771lm
3000K-4000K
45-10-100-288-XX-X
100W
16072lm - 16553m
3000K-4000K
45-10-125-288-XX-X
125W
19451lm - 20009lm
3000K-4000K
48 LED - HIGH POWER LED / HIGH LUMEN OUTPUT (Beam angle options: 8°-15°-25°-40°-60°-10x45°-30x60°)
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
45-10-135-48-XX-X
135W
18519lm
6500K
XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

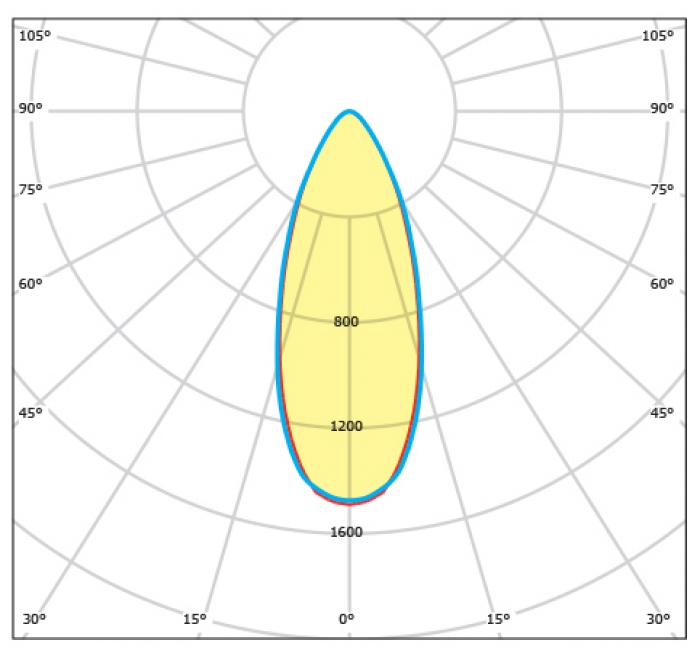

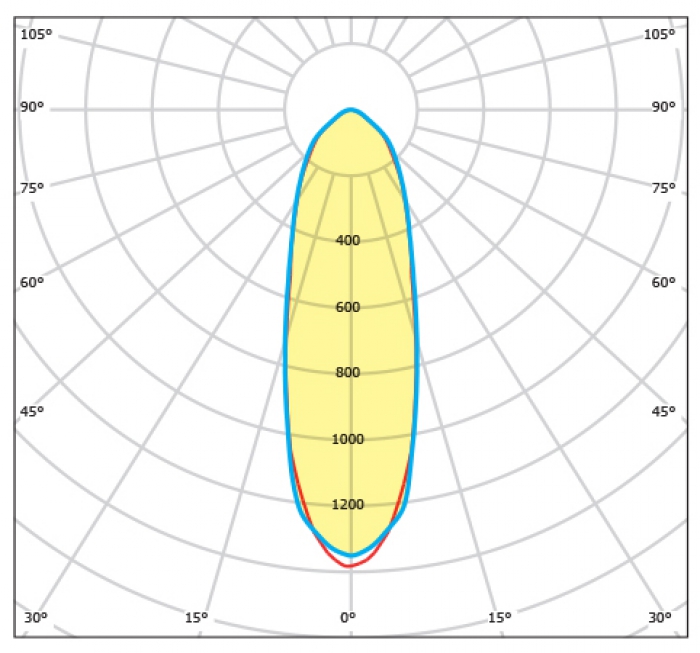

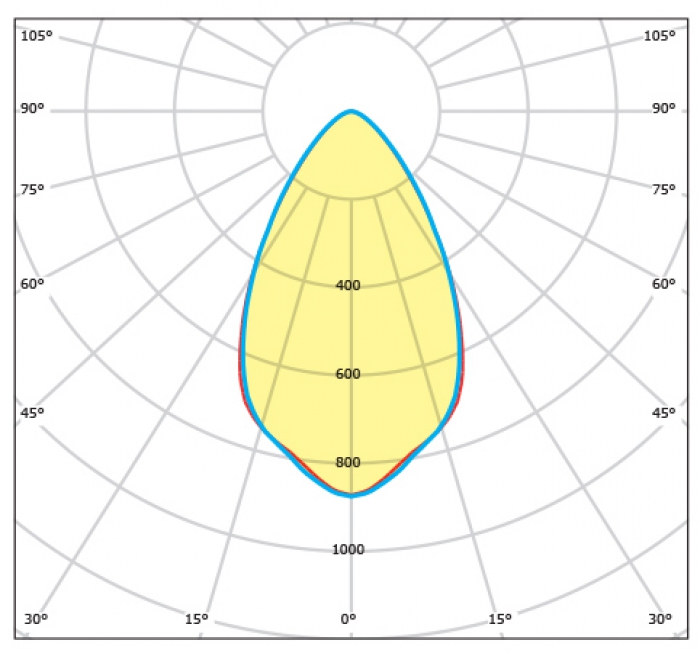

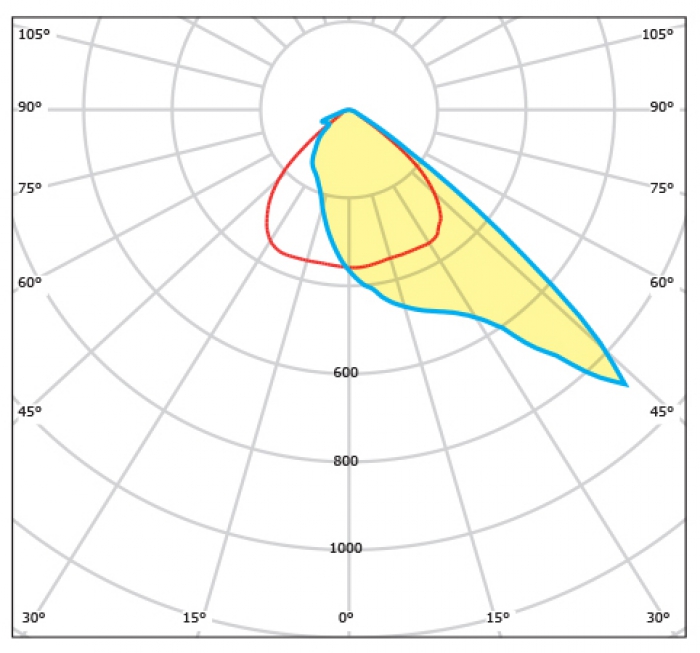

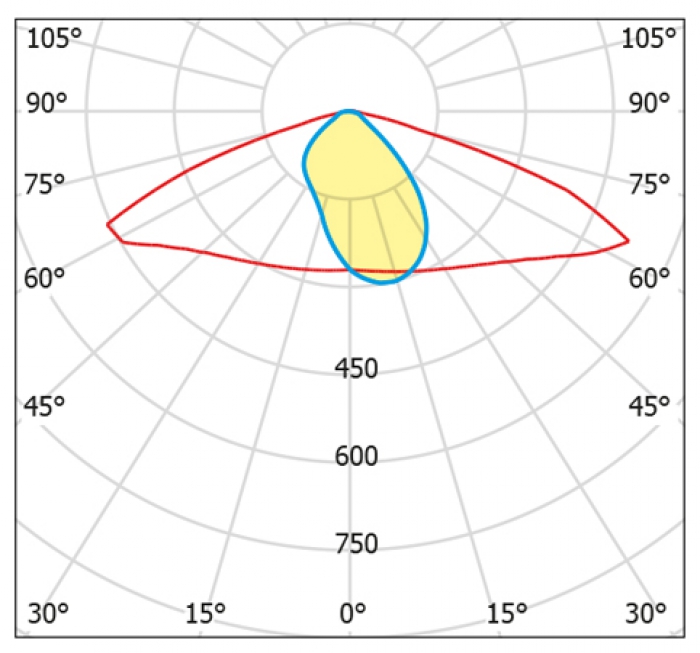

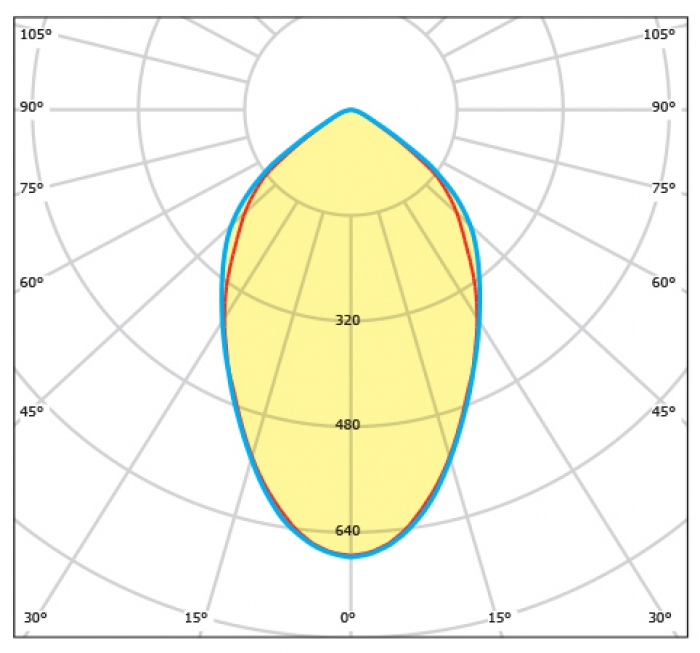

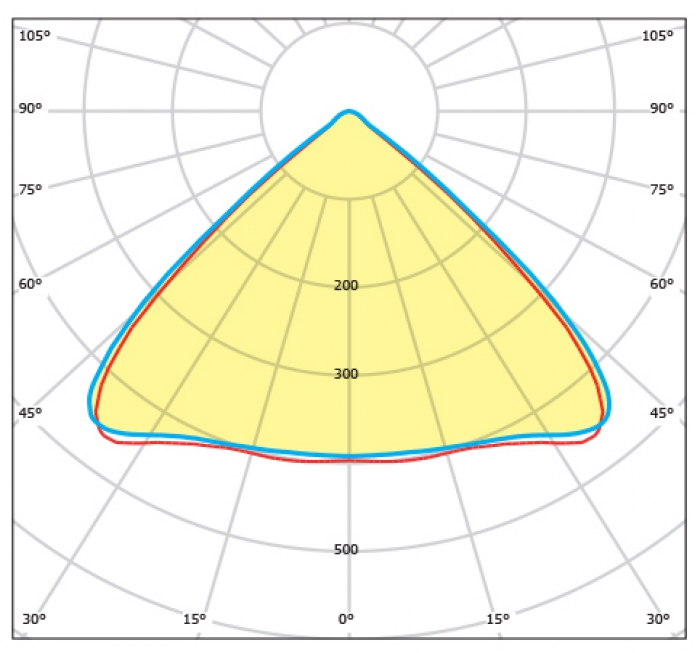

LIGHT CURVES
30°
40°
60°
60°
90°
143x50°
30x96°
