HIGH / LOW BAY LUMINAIRES / TETRA HIGH BAY HBV-2

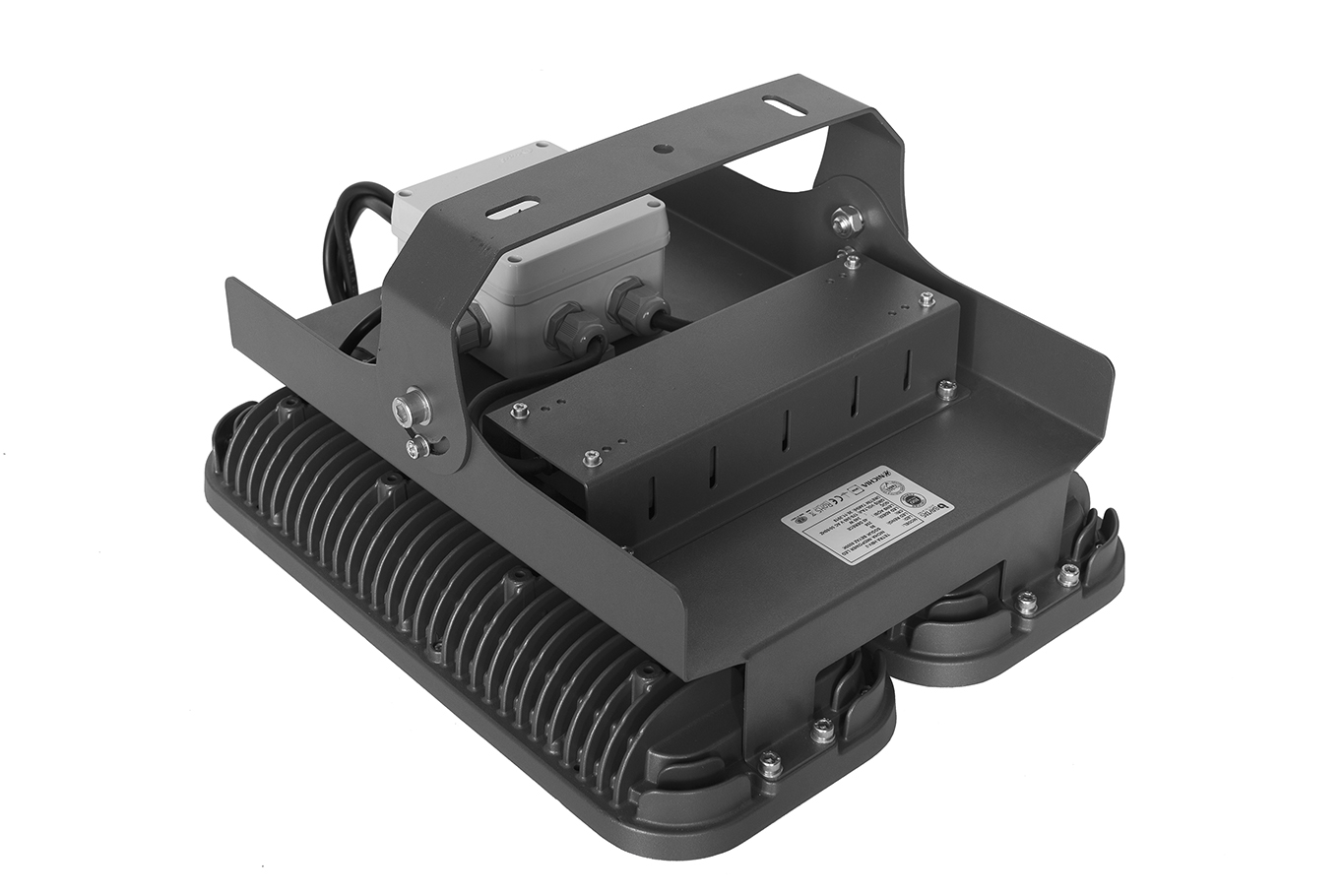

TETRA HIGH BAY HBV-2
APPLICATION
LED high-performance High-Bays with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
High-Bays made of aluminium die cast,
Galvanized steel fittings.
Clear 5mm safety glass
Silicon rubber gasket
Mounting bracket made of steel with
Electrostatic powder coating.
Lens angle 8°-15°-22°-30°-40°-60°-90°
Colour standard MT-X6-23
OptionalRAL codes.
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,16 m²
Weight: 12,5 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
- Conformity mark.LIGHT DISTRIBUTION

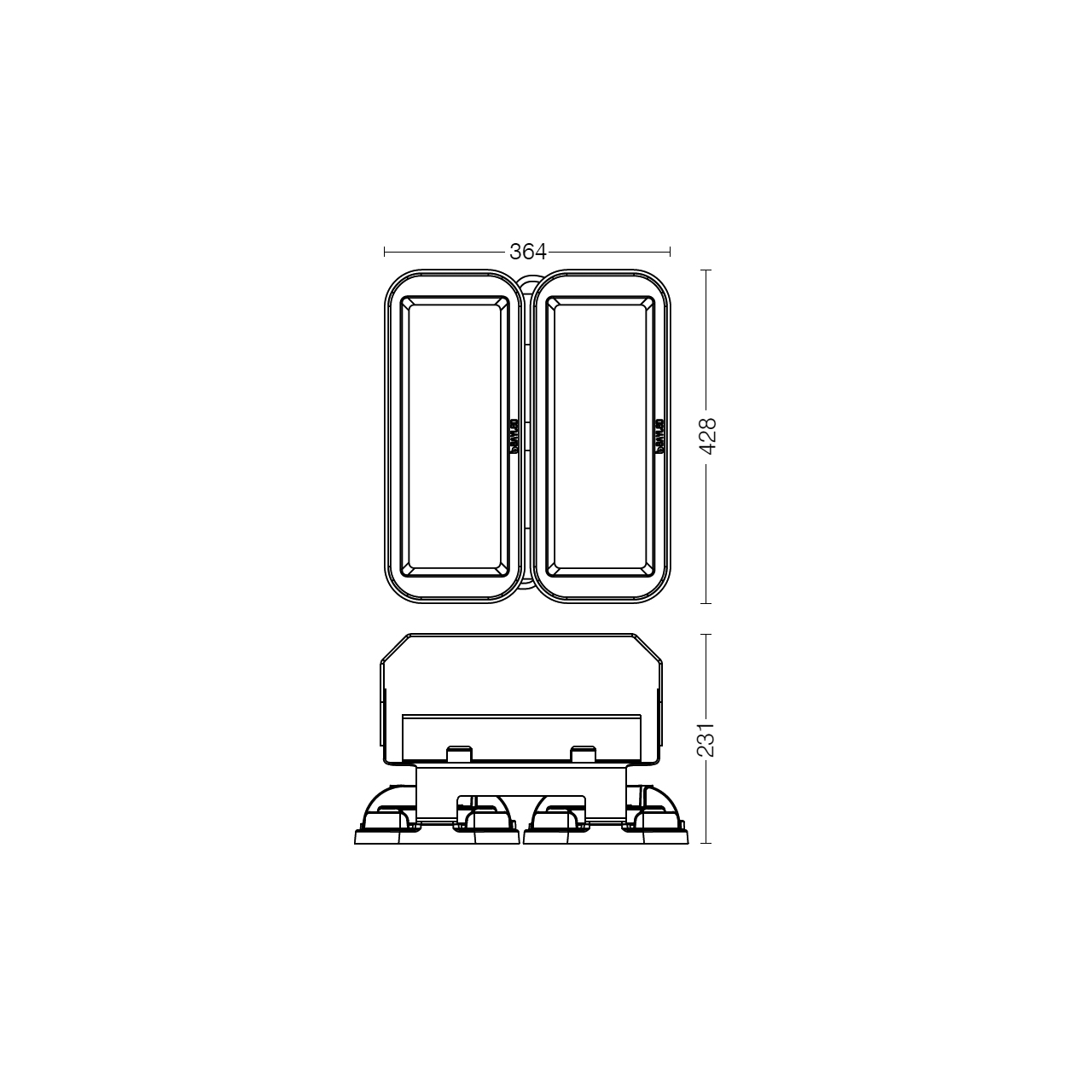

TECHNICAL DRAWING
PURCHASE ORDER TABLE
256 LED - MID POWER LED / STANDART LUMEN OUTPUT (Beam angle options: 15°-40°-60°-90°)
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
80-06-190-256-XX-X
190W
26197lm - 27567lm
3000K-4000K
80-06-230-256-XX-X
230W
29940lm - 31506lm
3000K-4000K
384 LED - MID POWER LED / HIGH LUMEN OUTPUT (Beam angle options: 30°-60°-90°)
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
80-06-150-384-XX-X
150W
23678lm - 24358lm
3000K-4000K
80-06-200-384-XX-X
200W
30658lm - 31538lm
3000K-4000K
576 LED - MID POWER LED / EXTRA HIGH LUMEN OUTPUT (Beam angle options: 22°-30°-60°-90°)
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
80-06-150-576-XX-X
150W
24828lm - 25542lm
3000K-4000K
80-06-200-576-XX-X
200W
32144lm - 33106lm
3000K-4000K
80-06-250-576-XX-X
250W
38902lm - 40018lm
3000K-4000K
96 LED - HIGH POWER LED / HIGH LUMEN OUTPUT (Beam angle options: 8°-15°-25°-40°-60°)
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
80-06-270-96-XX-X
270W
37038lm
6500K
XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

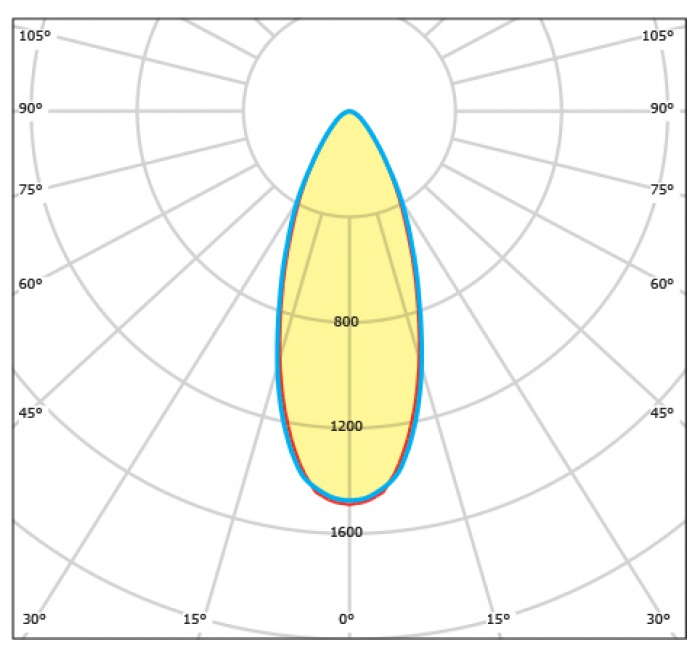

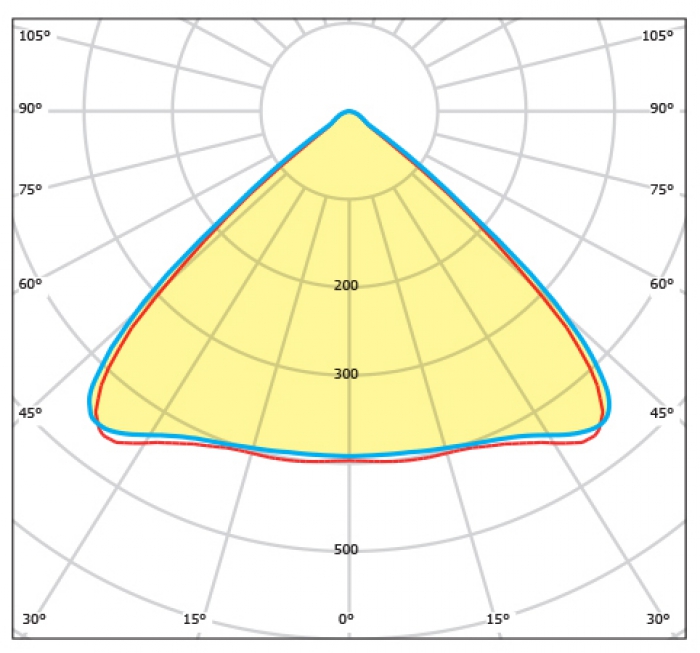

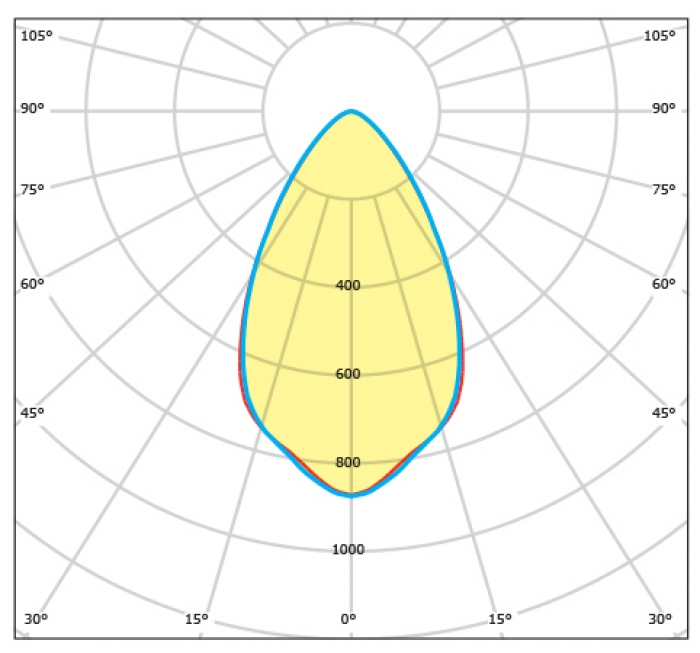

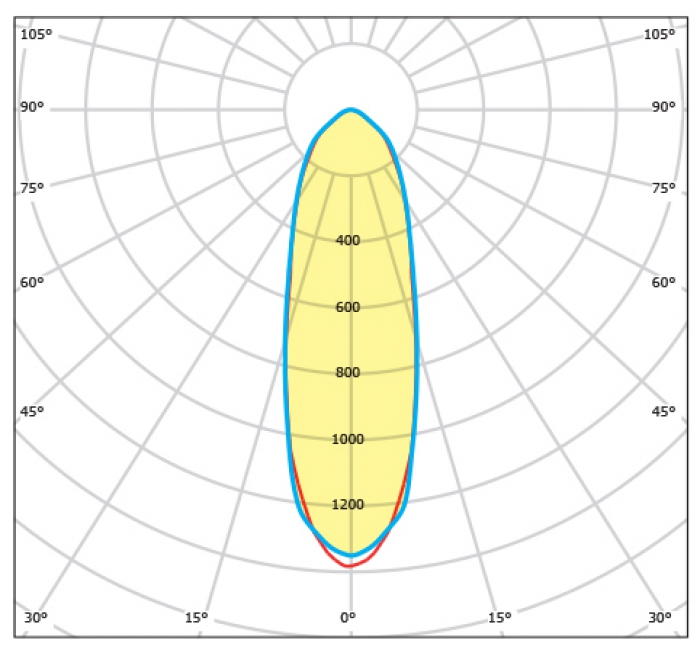

LIGHT CURVES
30°
40°
60°
90°
