DATA SHEETS
BOLLARDS / TEMO ANG DUO
TEMO ANG DUO
APPLICATION
LED high-performance bollards with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Bollard made of aluminium extrusion
Body pole aluminium
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 90 –264V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class II
Protection class IP66
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.

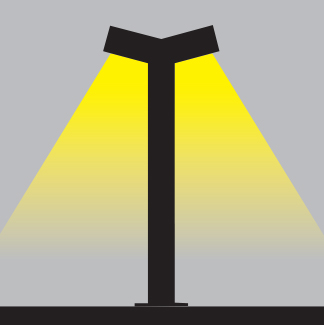

- Conformity mark.LIGHT DISTRIBUTION

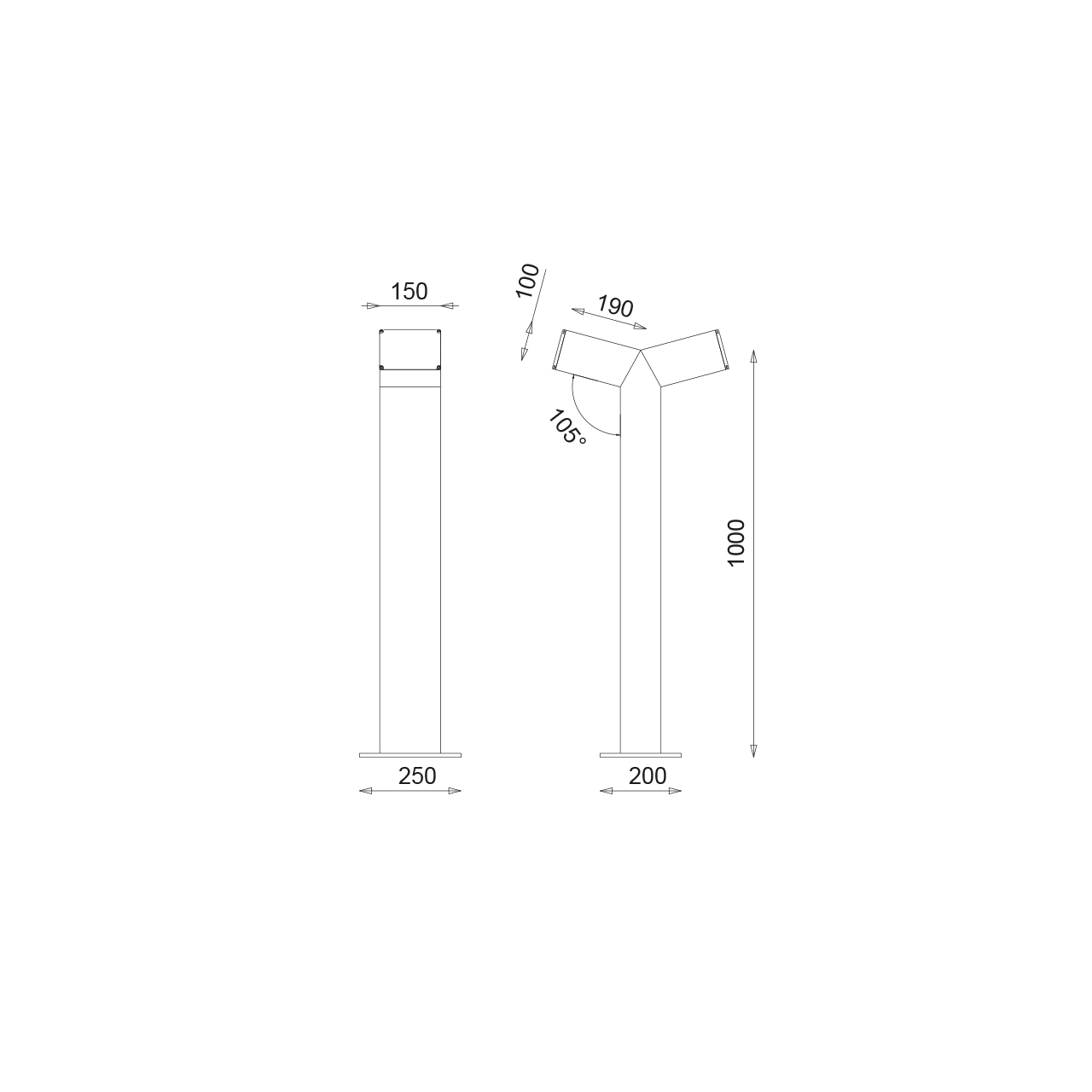

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
60-71-03-20-32-ASYM-X
20W
2820lm - 2980lm
3000K-4000K
60-71-03-36-32-ASYM-X
36W
4464lm - 4716lm
3000K-4000K
X: Led Color
LIGHT CURVES
