DATA SHEETS
FLOODLIGHTS / SIRUS

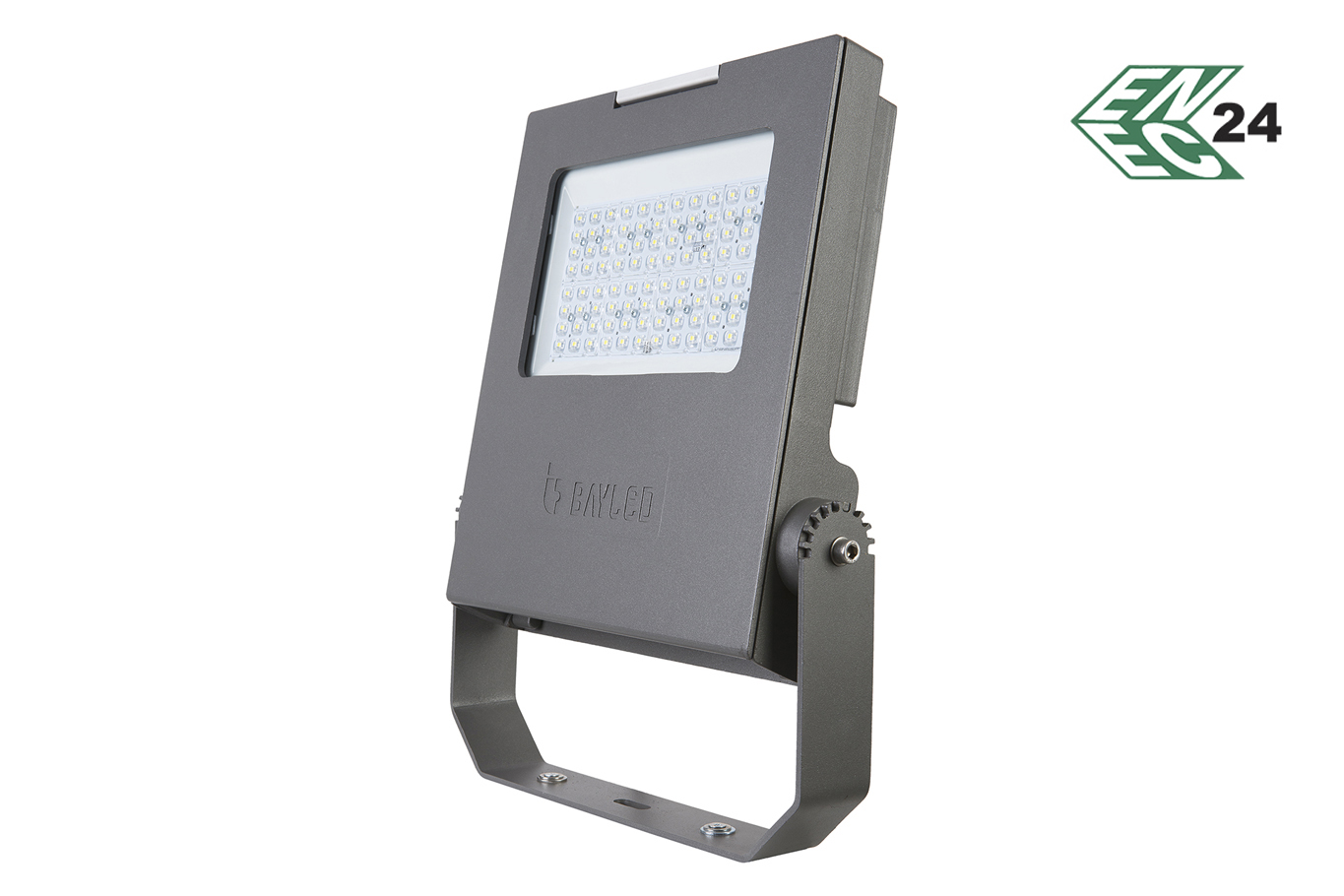

SIRUS
Product Description
| Housing material | Aluminium die-cast |
| Lens material | PMMA |
| Light distribution | 15°- 23°- 40°- 60°- 90°- 30°x96° |
| Input Voltage | 100-305 V AC |
| Power factor (min.) | 0.92 |
| Dimmable (optional) | 1-10V, DALI |
| Protection class | IP66 |
| Impact protection | IK09 |
| Net weight | 6,8 kg |
| Certificate | EN 60598, CE |

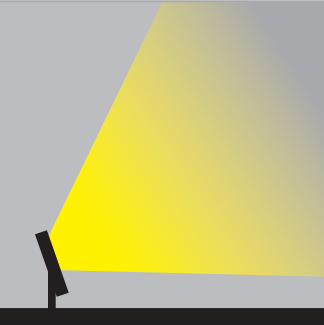

LIGHT DISTRIBUTION

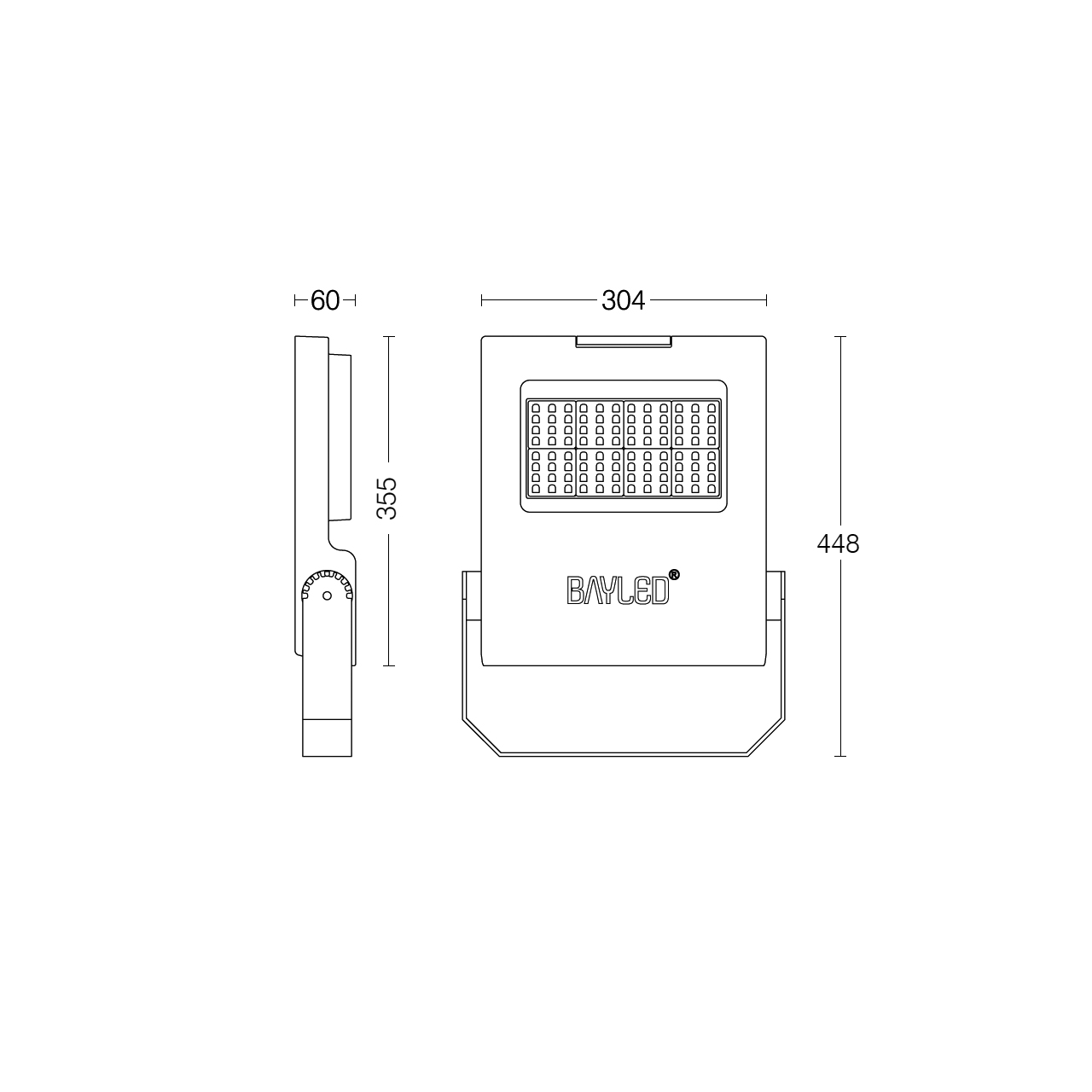

TECHNICAL DRAWING
PURCHASE ORDER TABLE
96 LED - STANDART LUMEN OUTPUT
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
45-06-50-96-XX-X
50W
7250lm - 7650lm
3000K-4000K
45-06-70-96-XX-X
70W
9590lm - 10150lm
3000K-4000K
45-06-90-96-XX-X
90W
11790lm - 12330lm
3000K-4000K
45-06-100-96-XX-X
100W
12800lm - 13400lm
3000K-4000K
192 LED - HIGH LUMEN OUTPUT
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
45-06-120-192-XX-X
120W
16320lm - 17160lm
3000K-4000K
45-06-150-192-XX-X
150W
19500lm - 20550lm
3000K-4000K
32 LED - HIGH POWER LED HIGH LUMEN OUTPUT
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
45-06-100-32-XX-X
100W
12960lm - 13020lm
3000K-4000K
XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

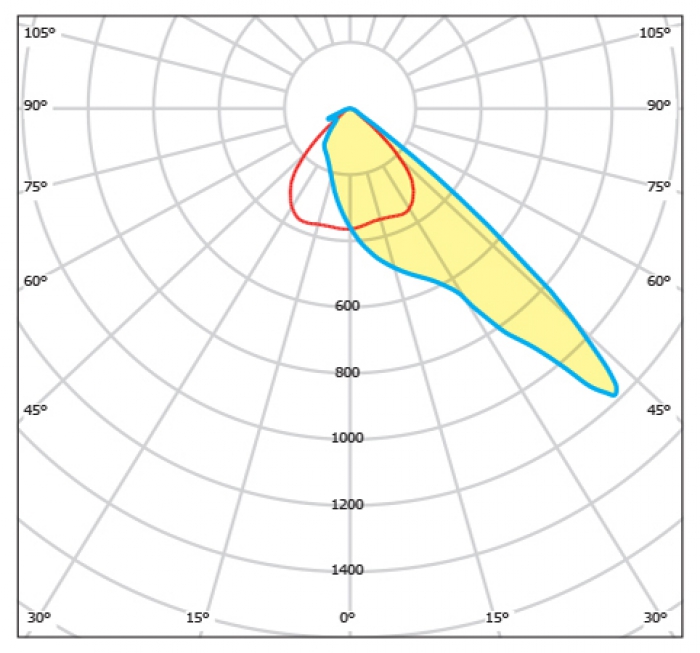

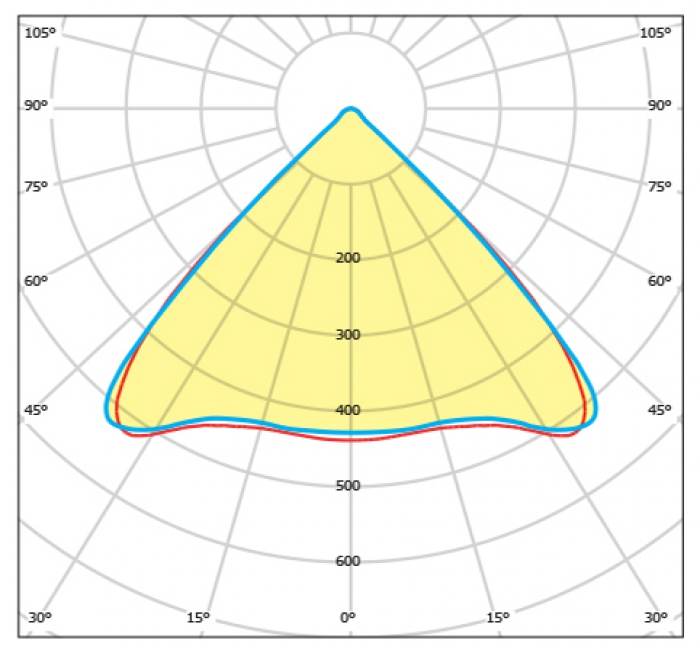

LIGHT CURVES
15°
40°
60°
90°
30x96°
