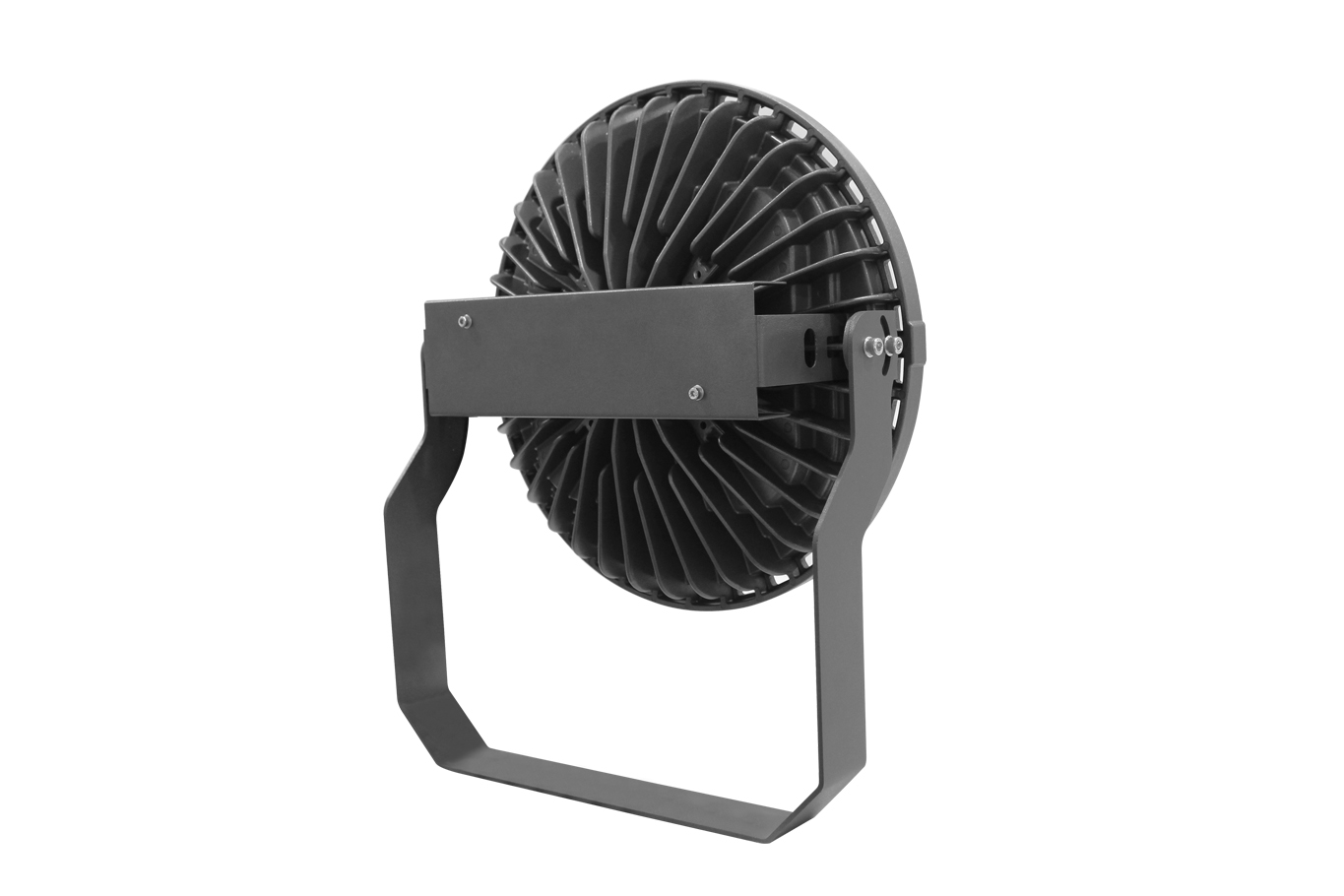

FLOODLIGHTS / ROON M

ROON M ROON M ROON M

Product Description

Housing material Aluminium die-cast
Lens material PMMA
Light distribution 15°-40°- 60°- 90°- 30°x96°
Input Voltage 100-305 V AC
Power factor (min.) 0.92
Dimmable (optional) 1-10V, DALI
Protection class IP66
Impact protection   IK09
Net weight  7,3 kg
Certificate EN 60598, CE

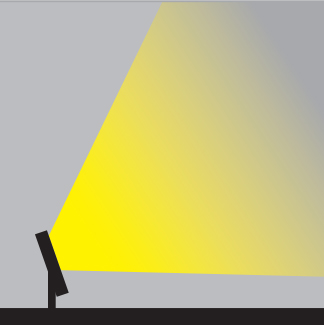

LIGHT DISTRIBUTION
ROON M

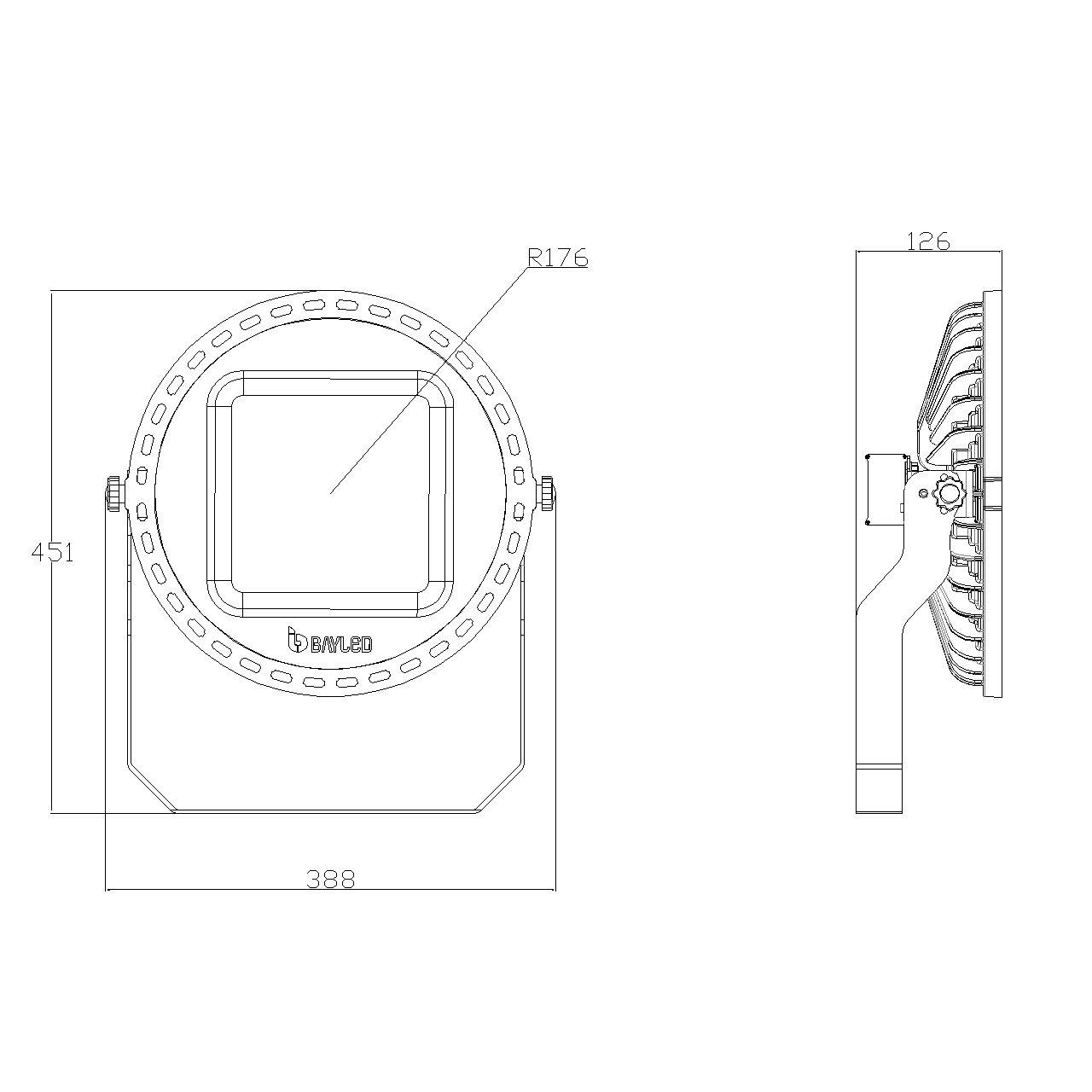

TECHNICAL DRAWING
DOWNLOADS
×
CATALOG PAGES
×
TECHNICAL DRAWING (AUTOCAD FILE)
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
80-108 LED - STANDART LUMEN OUTPUT
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-17-90-80-XX-X
90W
11863lm - 12483lm
3000K-4000K

45-17-120-108-XX-X
120W
15454lm - 16262lm
3000K-4000K

136 LED - HIGH LUMEN OUTPUT

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-17-140-136-XX-X
140W
18337lm – 19295lm
3000K-4000K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

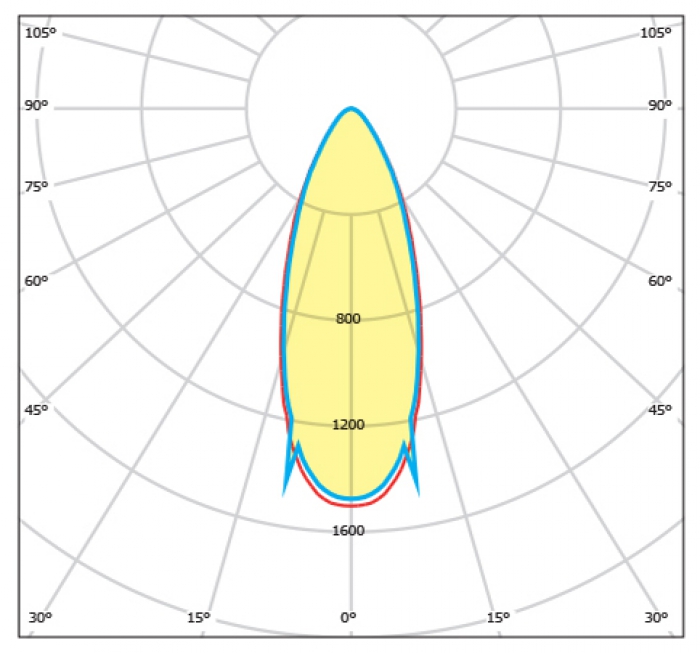

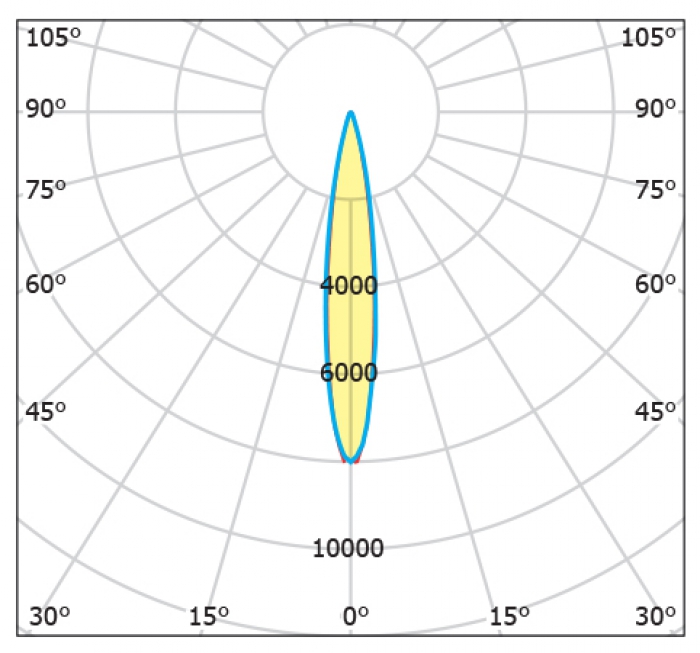

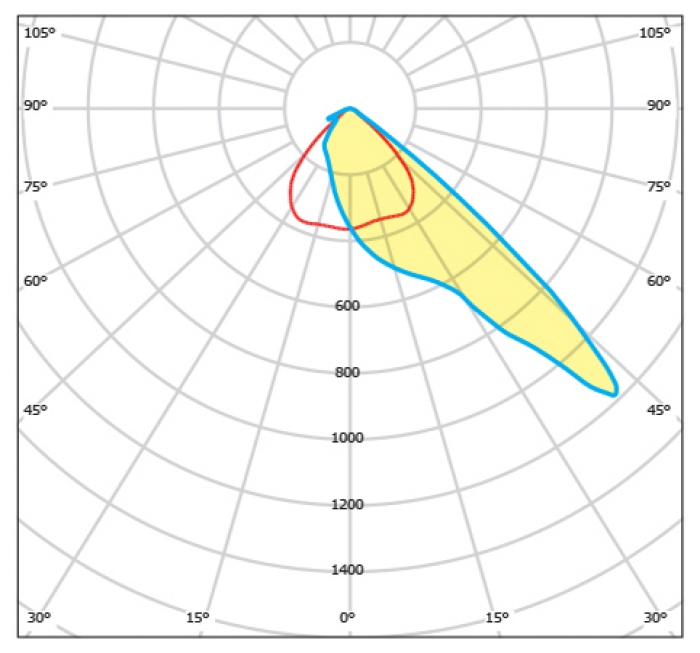

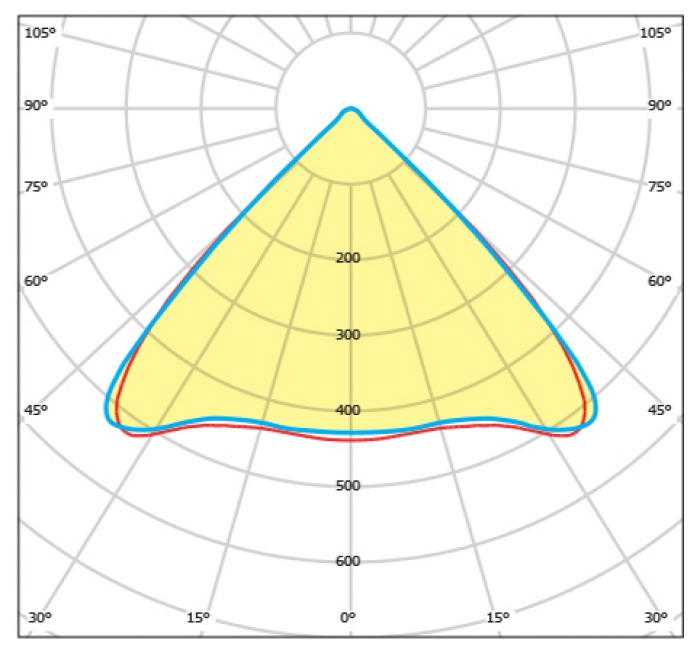

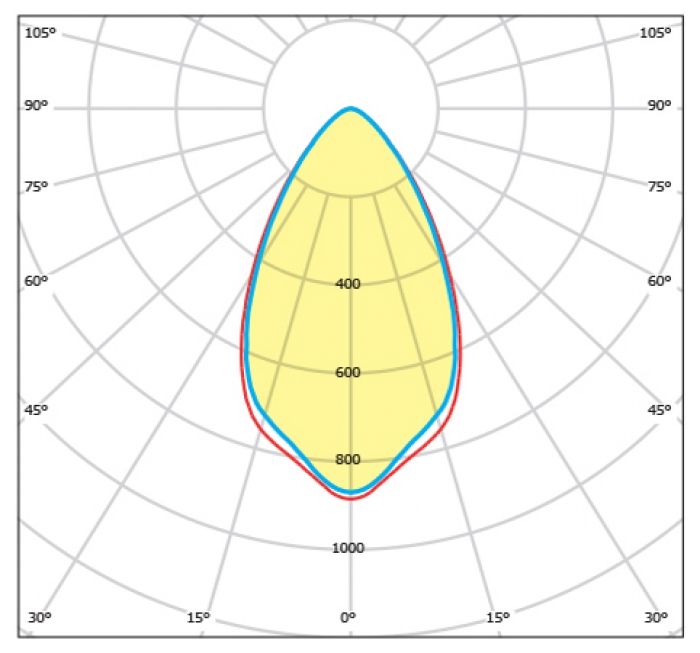

LIGHT CURVES
15°
40°
60°
90°
30x96°
TSE ROHS NO UV NO IR LONG LIFE LED IP66 IK09 Geri Dönüşüm Energy Saver DIM Dekoratif Damla CO2 Class I Çekiç CE A+
Lifetime 50.000 working hours at least
CCT tolerance within a 3 step MacAdams ellipse and LM80 compliant
