WALLWASHERS / RIGEL RGBW(A)

RIGEL RGBW(A)

Product Description

Housing material Aluminium extrusion
Lens material PMMA
Light distribution 17°- 25° - 35° - 45°x20°
Input Voltage 198-264 V AC
Power factor (min.) 0.92
DMX DMX512
Protection class IP66
Impact protection   IK09
Net weight  2,3 kg (120cm)
Certificate EN 60598, CE

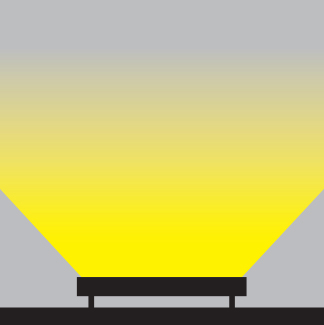

LIGHT DISTRIBUTION
RIGEL RGBW(A)

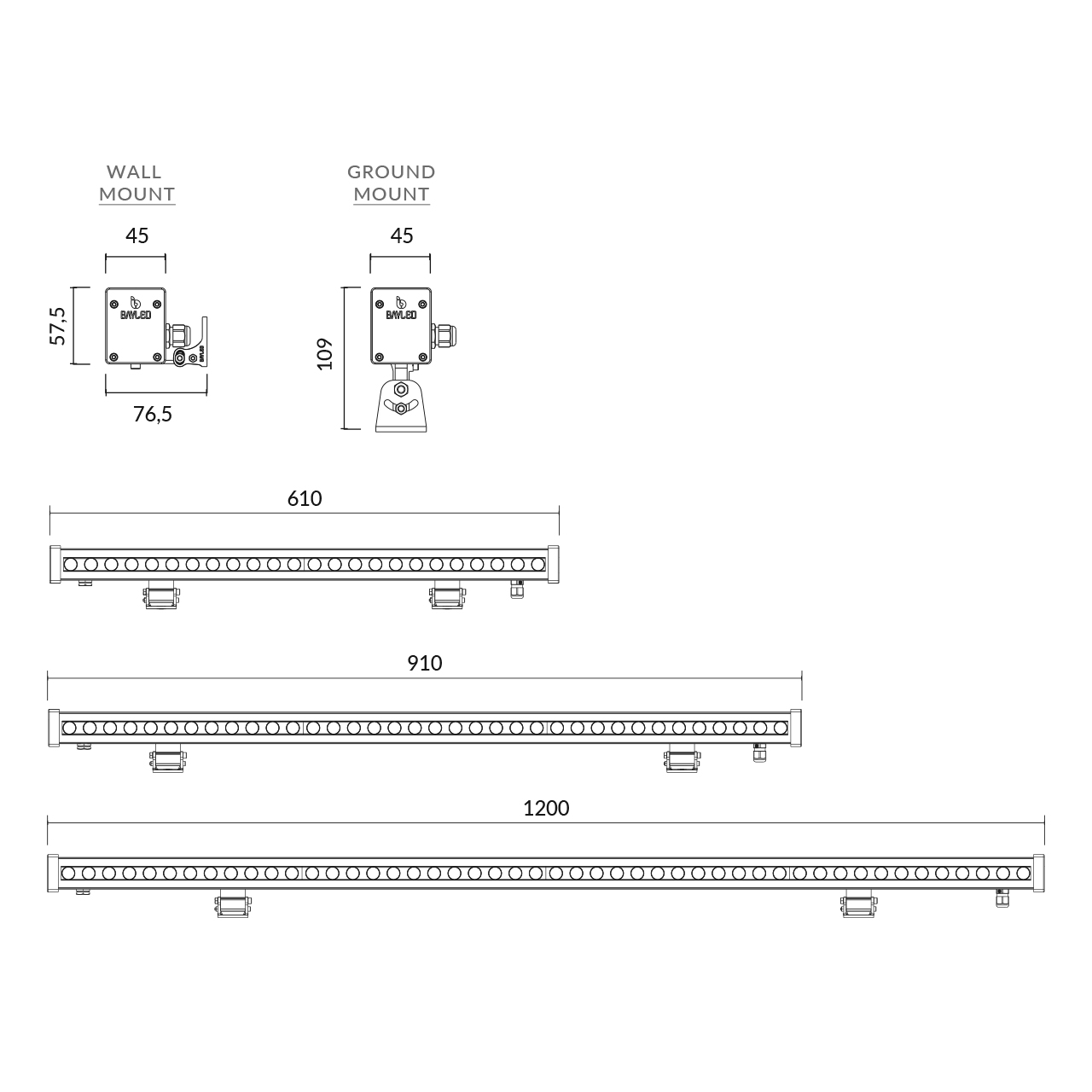

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
SPECIFICATION SHEET(S)
TECHNICAL DRAWING (AUTOCAD FILE)
MANUAL SHEETS
TEST REPORTS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
COLOR TEMPERATURE

 01-04-61-28-XX-RGBW
28W
RGBW(A)

 01-04-91-38-XX-RGBW
38W
RGBW(A)

 01-04-120-54-XX-RGBW
54W
RGBW(A)

XX: Lens Angle

LIGHT CURVES
17°
25°
35°
20°x45°
