WALLWASHERS / RIGEL 91
RIGEL 91
APPLICATION
LED high-performance wallwashers with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Wallwasher made of aluminium extrusion,
polyamide and stainless steel.
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 30°
Mounting bracket made of plastic.
Lens angles:
Multi Lens (linear): 17° - 25° - 35° - 20°x45°(asym.)
Colour standard : Mat anodizied
Optional RAL codes.
LED power supply unit
Input 198 – 264V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,005 m²
Weight: 1,7 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.

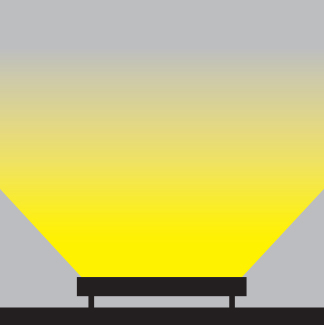

- Conformity mark.LIGHT DISTRIBUTION

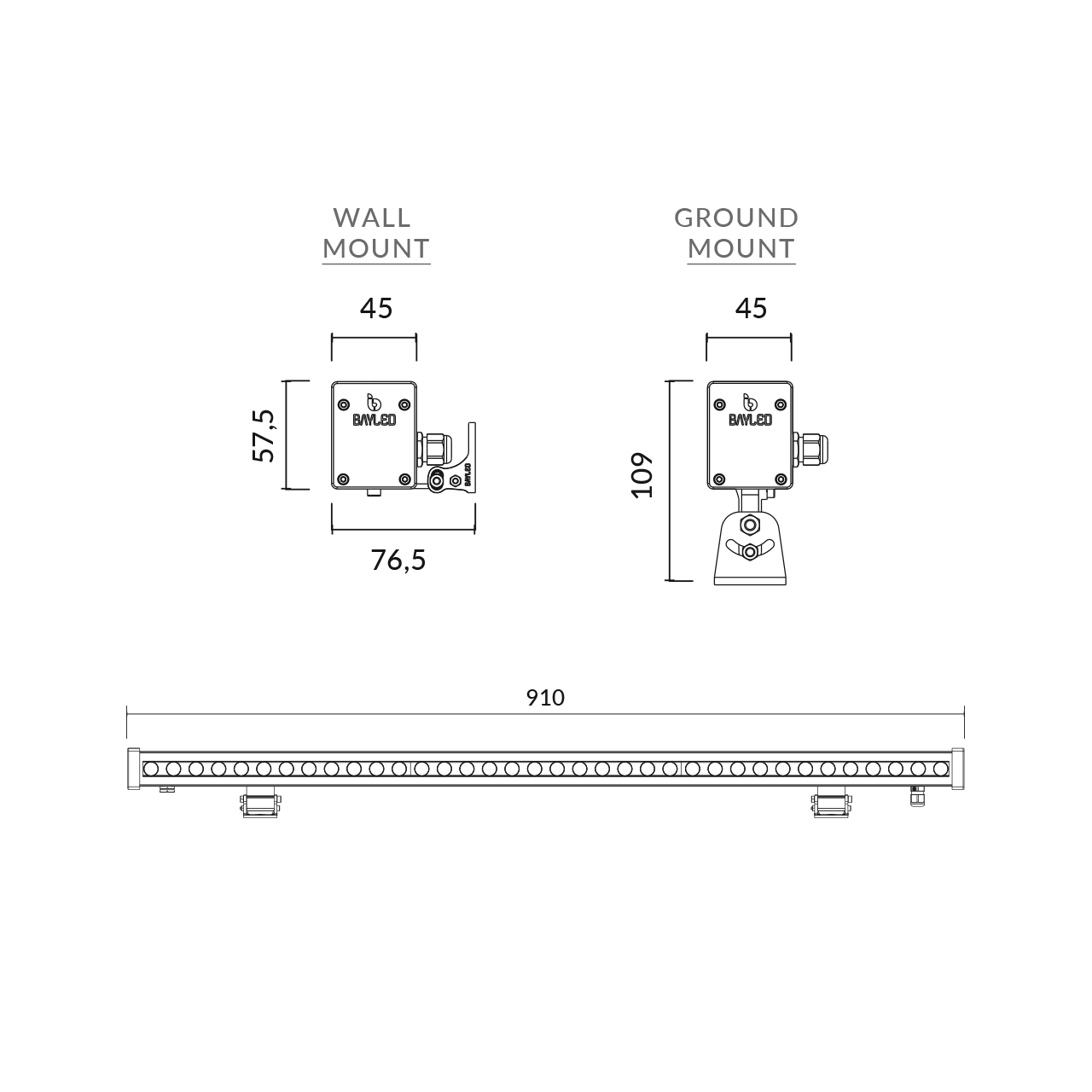

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
01-04-91-36-XX-X
36W
4863lm – 5117lm
3000K-4000K
XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

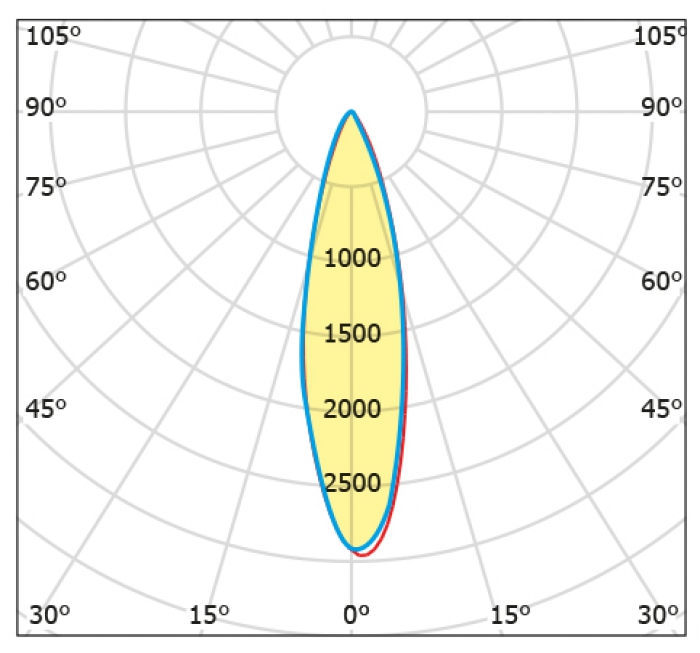

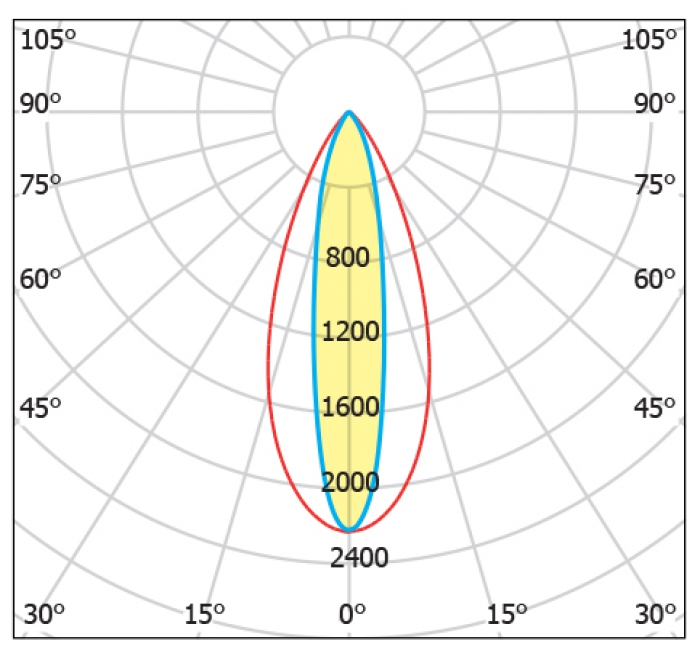

LIGHT CURVES
17°
25°
35°
20x45°
