RECESSED LUMINAIRES / TITUS
TITUS
APPLICATION
LED high-performance inground with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Inground made of aluminium die cast,
Aluminium and stainless steel.
Clear 6mm safety glass
Silicon base seal gasket
Mounting bracket made of plastic.
Electrostatic powder coating.
Lens angle 30°-50°
Colour standard 7040
OptionalRAL codes.
LED power supply unit
Input 90 –264V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP67
Impact strenght IK09
Operation temperature -25°C / +55°C
Weight: 2 kg
Complies with European standards
EN 60598 and CE certificate.

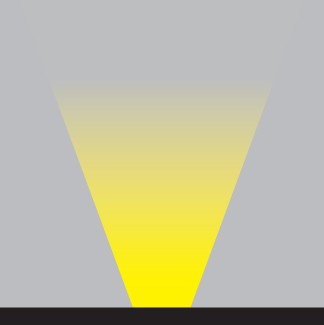

-- Conformity mark.LIGHT DISTRIBUTION

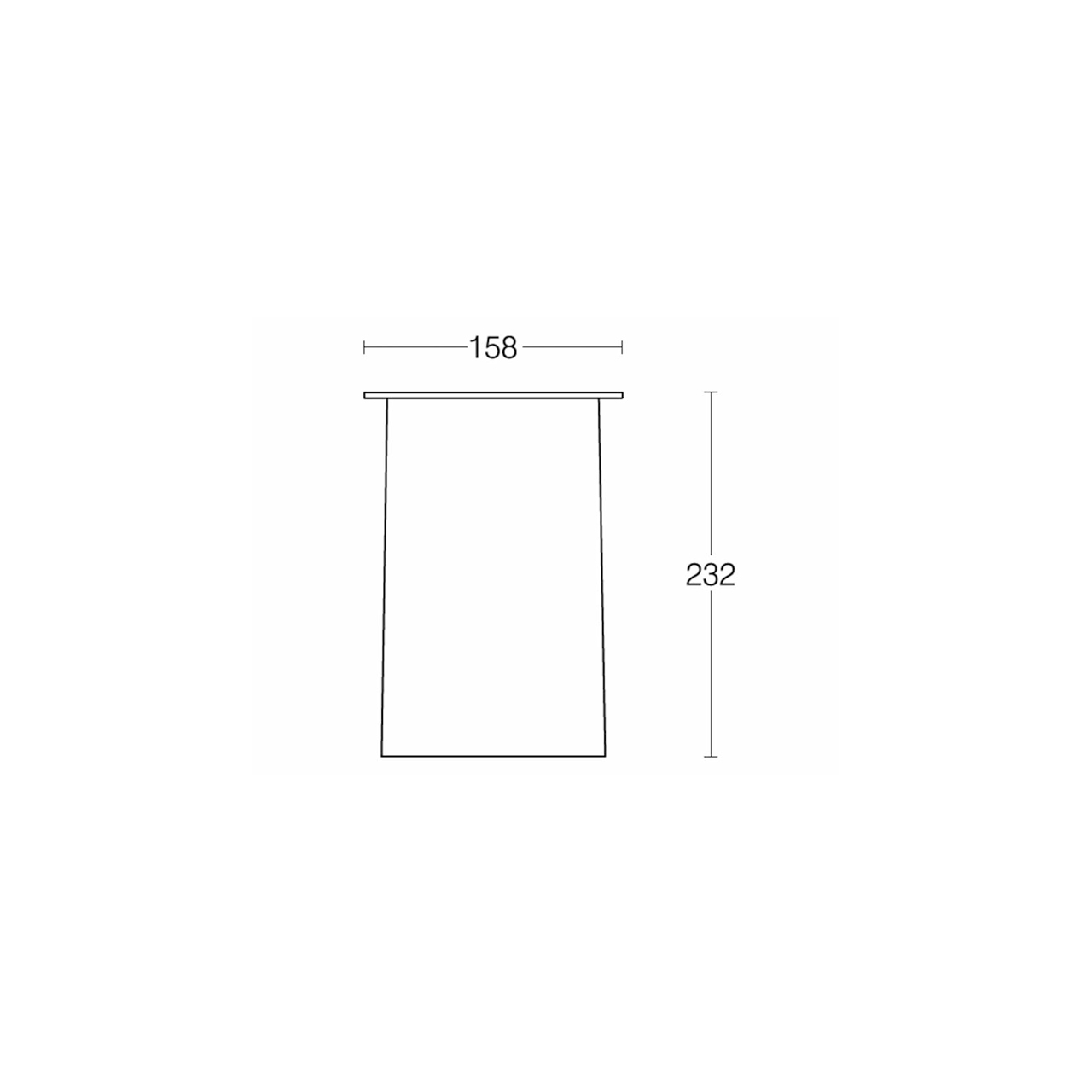

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
15-02-009-XX-X
9W
756lm - 796lm
3000K-4000K
15-02-015-XX-X
15W
1111lm - 1169lm
3000K-4000K
XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

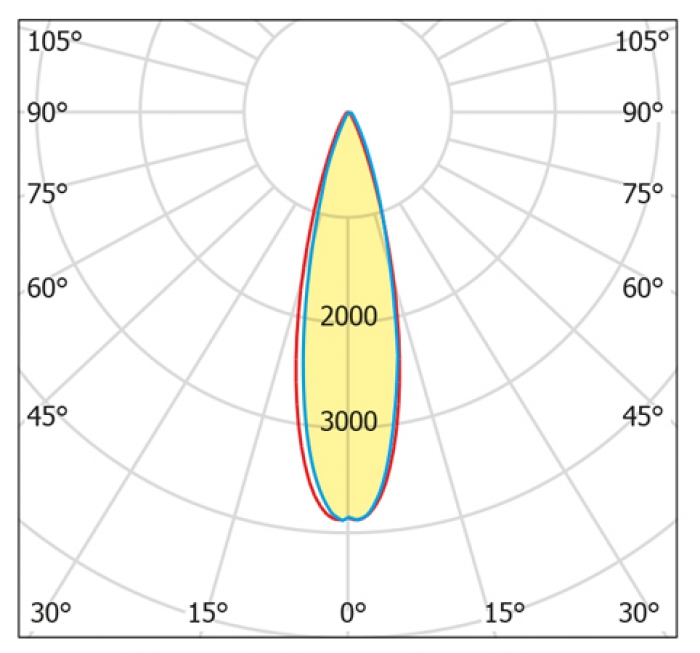

LIGHT CURVES
30°
