DATA SHEETS
BOLLARDS / MARCO D200
MARCO D200
APPLICATION
LED high-performance urban lights with
Wide & Symmetric Beam light distribution
PRODUCT DESCRIPTION
Bollard made of aluminium alloy& die cast.
Body pole aluminium
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 198 – 264V AC 50 / 60 Hz
Power factor > 90% full load
2KV/1KV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class II
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.

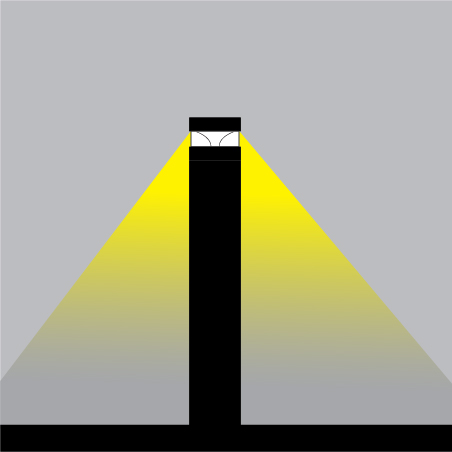

- Conformity mark.LIGHT DISTRIBUTION

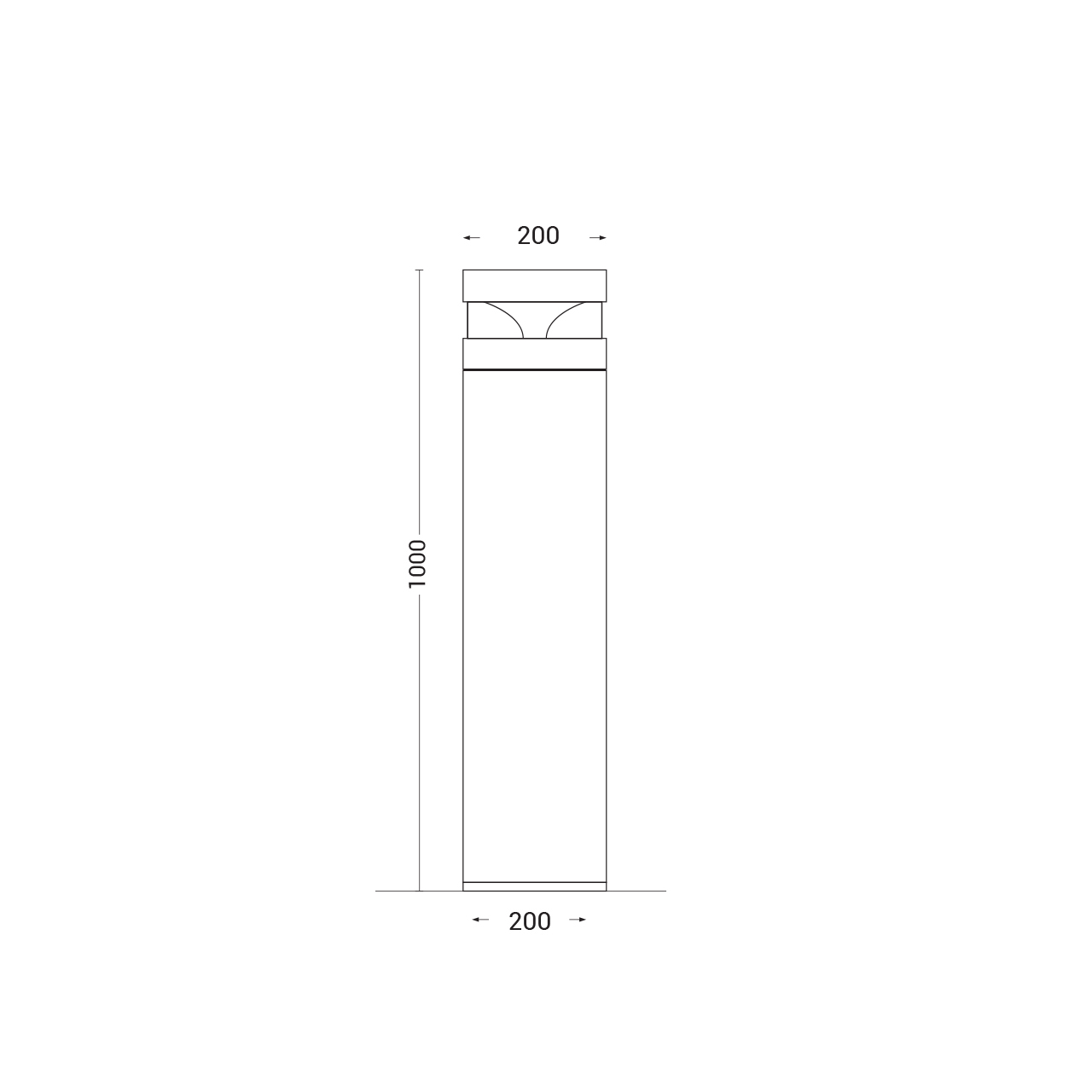

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
84-D200-20-X
20W
1579lm - 1631lm
3000K-4000K
84-D200-28-X
28W
2065lm - 2132lm
3000K-4000K
84-D200-35-X
35W
2403lm - 2482lm
3000K-4000K
X: Led Color
LIGHT CURVES
