DATA SHEETS
CEILING / KLAIR SQUARE
KLAIR SQUARE
APPLICATION
LED high-performance downlight with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Made of aluminium die cast and extrusion
Aluminium and stainless steel.
Clear 6mm safety glass
Silicon base seal gasket
Electrostatic powder coating.
Lens angle 8°- 15°- 25°- 36°- 60°
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 198 – 264V AC 50 / 60 Hz
Power factor > 87% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP67
Impact strenght IK09
Operation temperature -25°C / +55°C
Weight: 1,35 kg
Complies with European standards
EN 60598 and CE certificate.

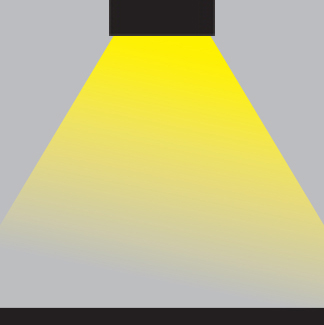

-- Conformity mark.LIGHT DISTRIBUTION

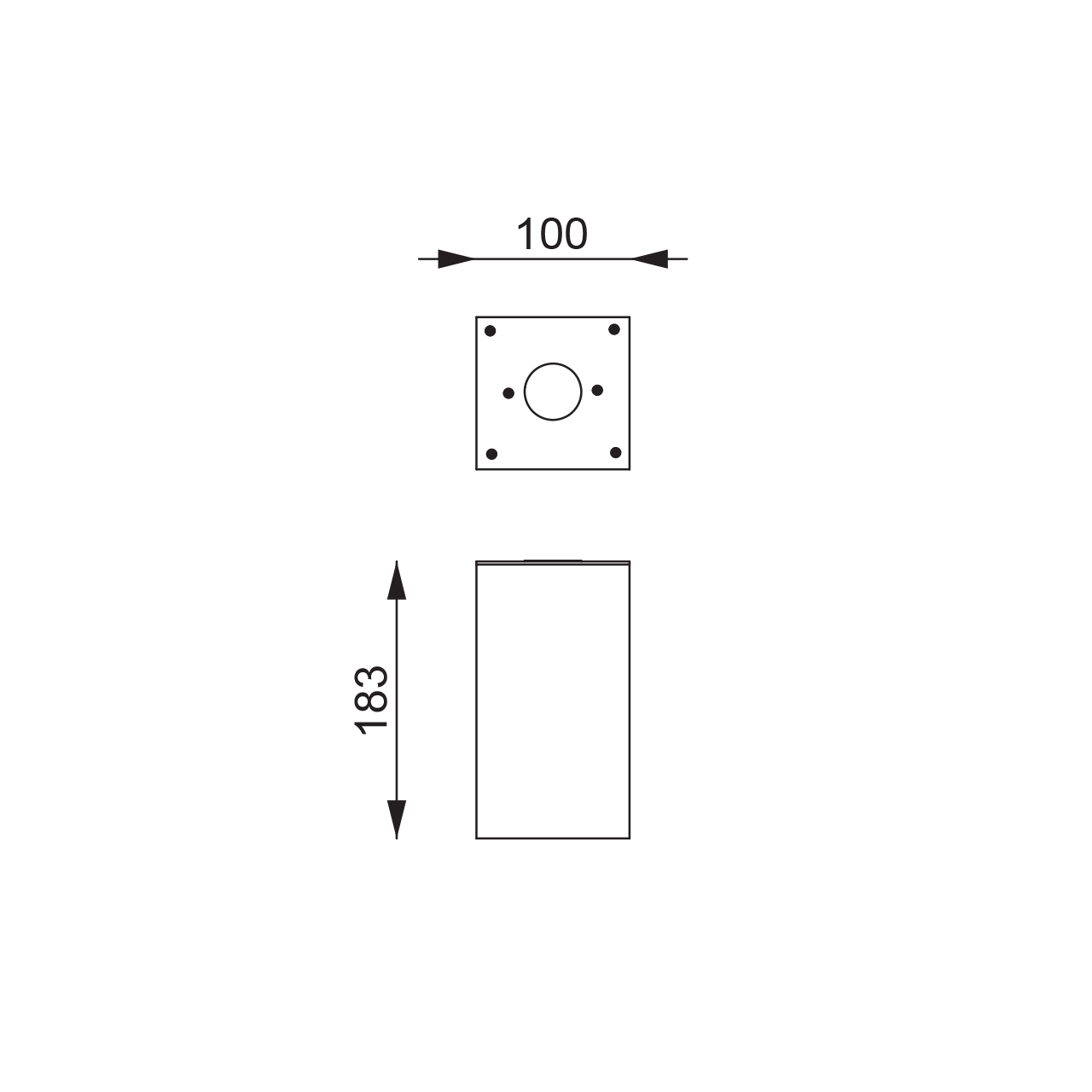

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUM. LUMINOUS FLUX
COLOR TEMPERATURE
14-02-01-01-XX-X
1W
103lm - 108lm
3000K-4000K
14-02-03-03-XX-X
3W
270lm - 282lm
3000K-4000K
XX: Lens Angle , X: Led Color
LIGHT CURVES

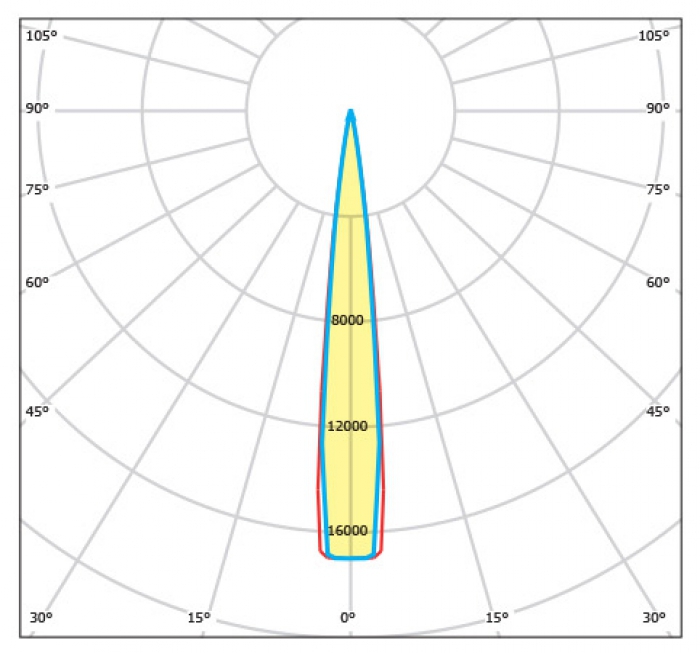

8°

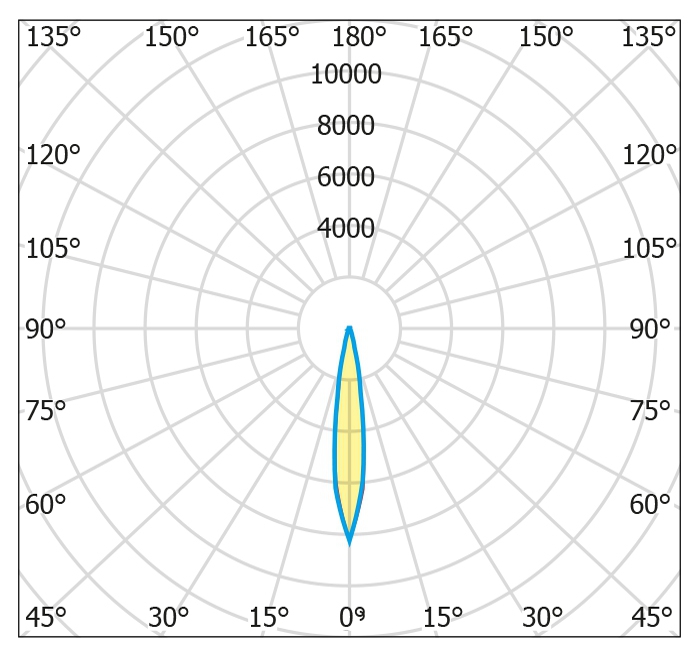

15°

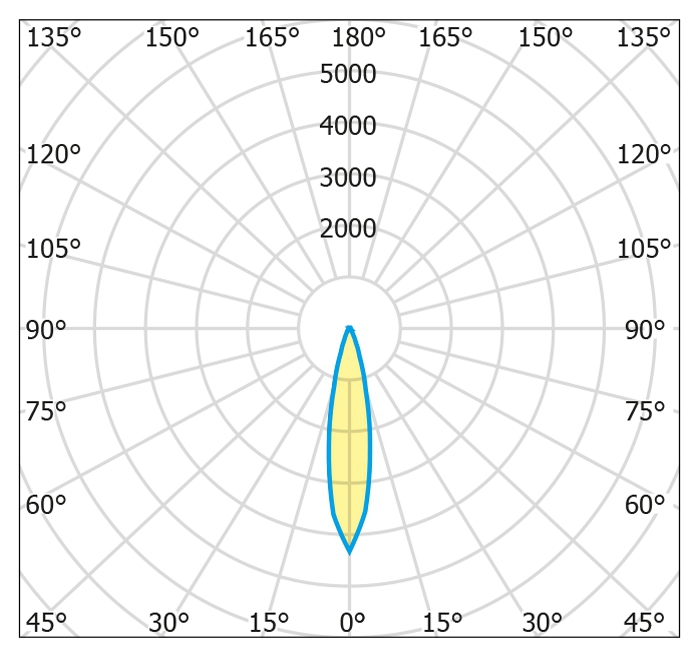

25°
26°
60°
