DATA SHEETS
HIGH / LOW BAY LINEAR LUMINAIRES / EXEGI 65
EXEGI 65
APPLICATION
LED high-performance waterproof lights with
Wide Beam light distribution
PRODUCT DESCRIPTION
Product made of
Polycarbon and Aluminium profile.
Stainless Steel and Polycarbon lids.
Silicon rubber gasket
IP66 connector
Mounting bracket made of stainless steel
1 mm stainless steel rope (optional)
LED chip angle 120°(without lens)
LED power supply unit
Input 198 – 264V AC 50 / 60 Hz
Power factor > 96% full load
2kV surge protection
DALI controllable (optional)
0-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK10
Operation temperature -25°C / +55°C
Wind catching area: 0,07 m²
Weight: 1,37 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.

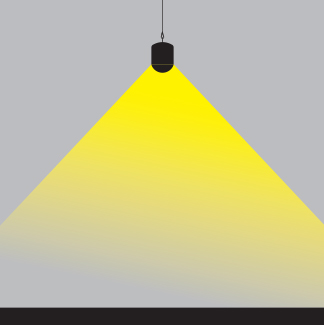

- Conformity mark.LIGHT DISTRIBUTION

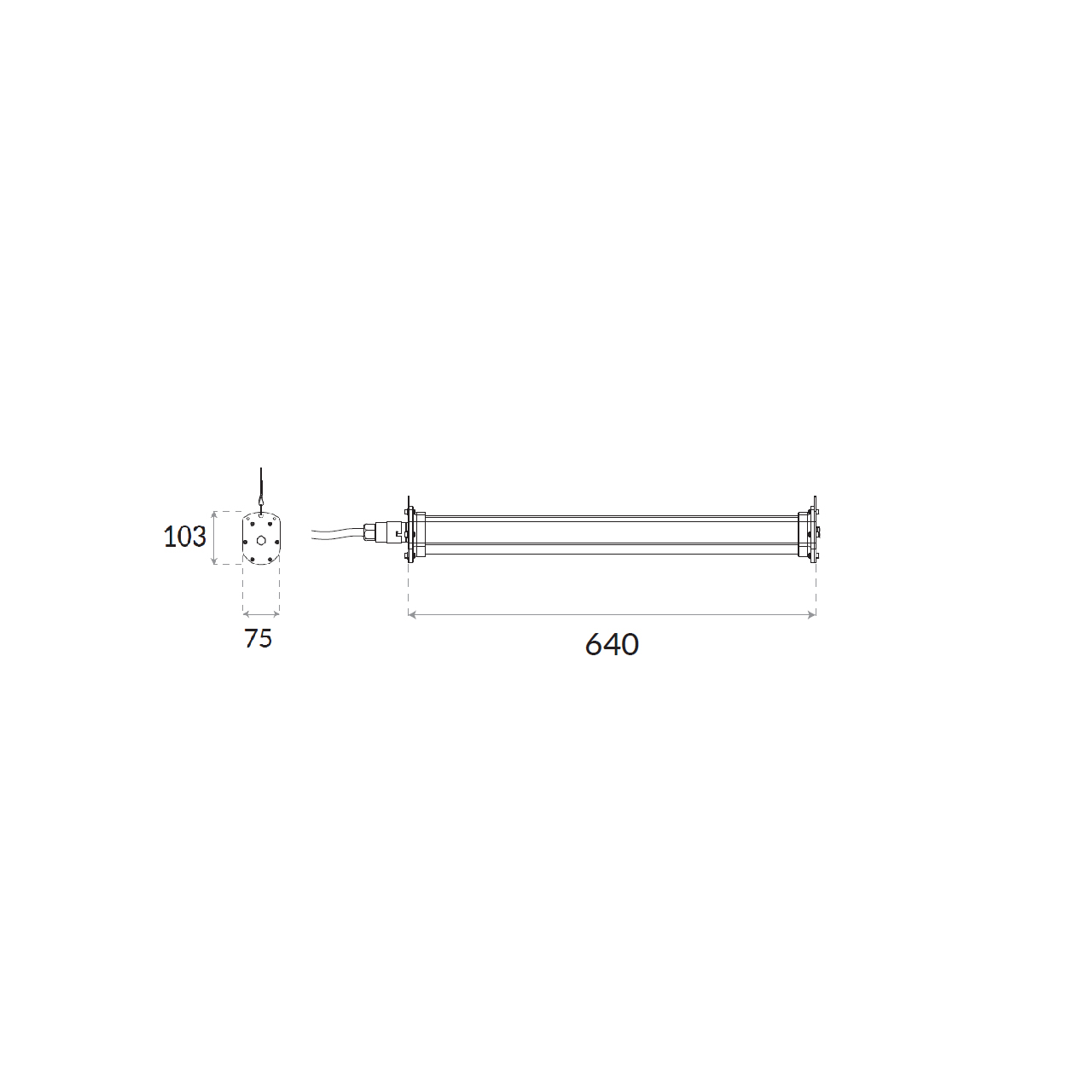

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
90-01-65-25-96-X
25W
3483lm-3586lm
3000K-4000K
90-01-65-35-96-X
35W
4581lm-4731lm
3000K-4000K
X: Led Color
EXEGI MOUNTING OPTIONS
LIGHT CURVES
