URBAN LIGHTING LUMINAIRES / ELA CUST
ELA CUST
APPLICATION
LED high-performance urban lights with
Wide Beam light distribution
PRODUCT DESCRIPTION
Body pole manufactured from aluminium
Optics eliptical shaped asymmetrical lenses
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact Resistance IK08
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.
- Conformity mark.

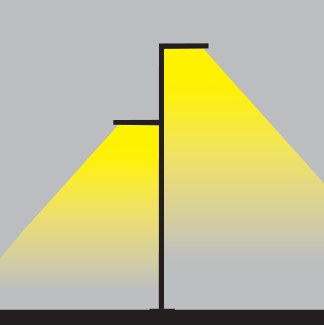

LIGHT DISTRIBUTION

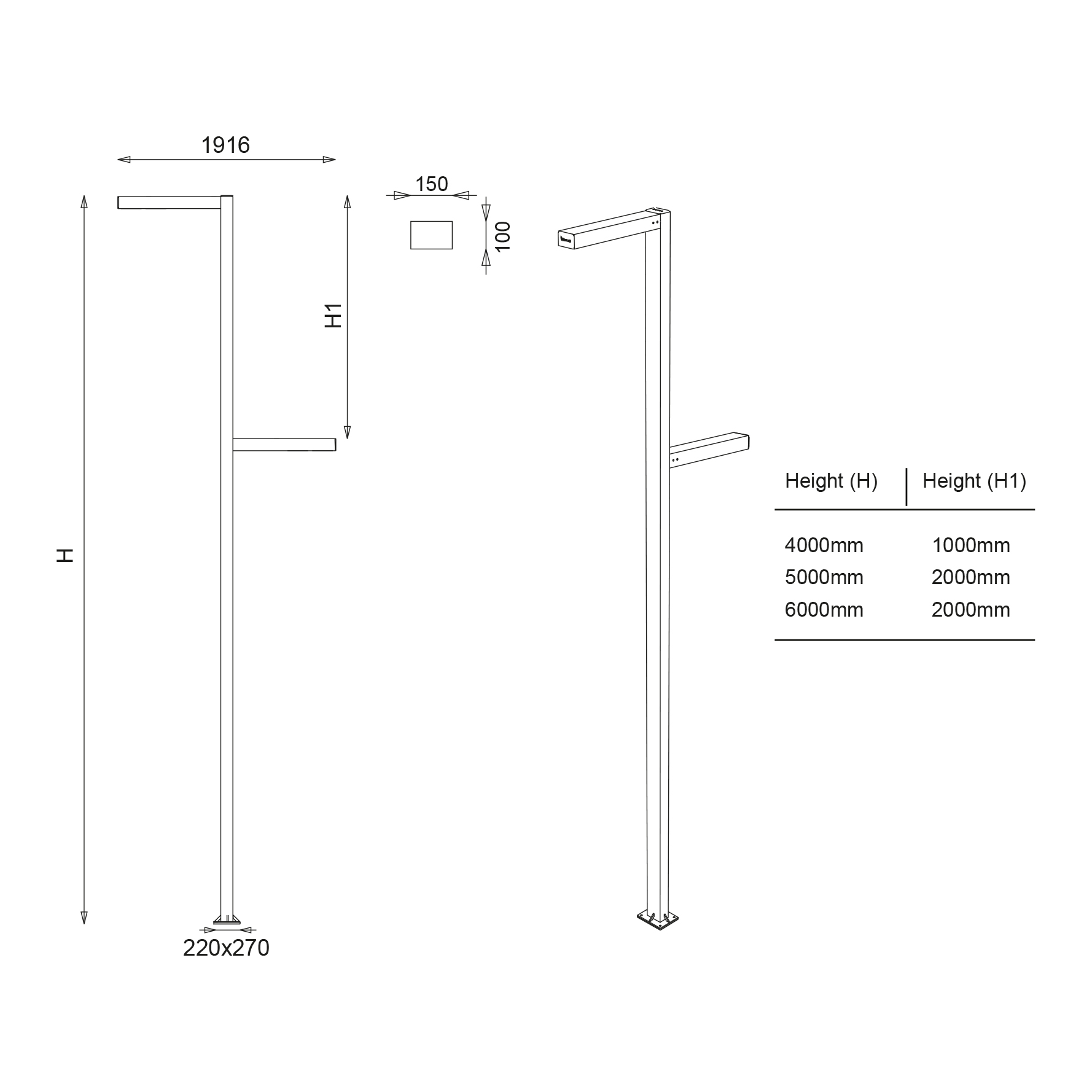

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUM. LUMINOUS FLUX
COLOR TEMPERATURE
POLE HEIGHT
60-74-06-60-24-04-ASYM-X (1 MODULE)
25W+35W
6793lm - 7293lm
3000K-4000K
4m
60-74-06-60-24-05-ASYM-X (1 MODULE)
25W+35W
6793lm - 7293lm
3000K-4000K
5m
60-74-06-60-24-06-ASYM-X (1 MODULE)
25W+35W
6793lm - 7293lm
3000K-4000K
6m
60-74-06-90-24-04-ASYM-X (1 MODULE)
40W+50W
8944lm - 9601lm
3000K-4000K
4m
60-74-06-90-24-05-ASYM-X (1 MODULE)
40W+50W
8944lm - 9601lm
3000K-4000K
5m
60-74-06-90-24-06-ASYM-X (1 MODULE)
40W+50W
8944lm - 9601lm
3000K-4000K
6m
60-74-07-120-48-04-ASYM-X (2 MODULE)
50W+70W
13043lm - 14002lm
3000K-4000K
4m
60-74-07-120-48-05-ASYM-X (2 MODULE)
50W+70W
13043lm - 14002lm
3000K-4000K
5m
60-74-07-120-48-06-ASYM-X (2 MODULE)
50W+70W
13043lm - 14002lm
3000K-4000K
6m
60-74-07-180-48-04-ASYM-X (2 MODULE)
80W+100W
17368lm - 18645lm
3000K-4000K
4m
60-74-07-180-48-05-ASYM-X (2 MODULE)
80W+100W
17368lm - 18645lm
3000K-4000K
5m
60-74-07-180-48-06-ASYM-X (2 MODULE)
80W+100W
17368lm - 18645lm
3000K-4000K
6m
60-74-08-180-72-05-ASYM-X (3 MODULE)
80W+100W
19564lm - 21003lm
3000K-4000K
5m
60-74-08-180-72-06-ASYM-X (3 MODULE)
80W+100W
19564lm - 21003lm
3000K-4000K
6m
60-74-08-270-72-05-ASYM-X (3 MODULE)
120W+150W
26052lm - 27968lm
3000K-4000K
5m
60-74-08-270-72-06-ASYM-X (3 MODULE)
120W+150W
26052lm - 27968lm
3000K-4000K
6m
X: Led Color
