إنارة مدينة / DORA LINEAR

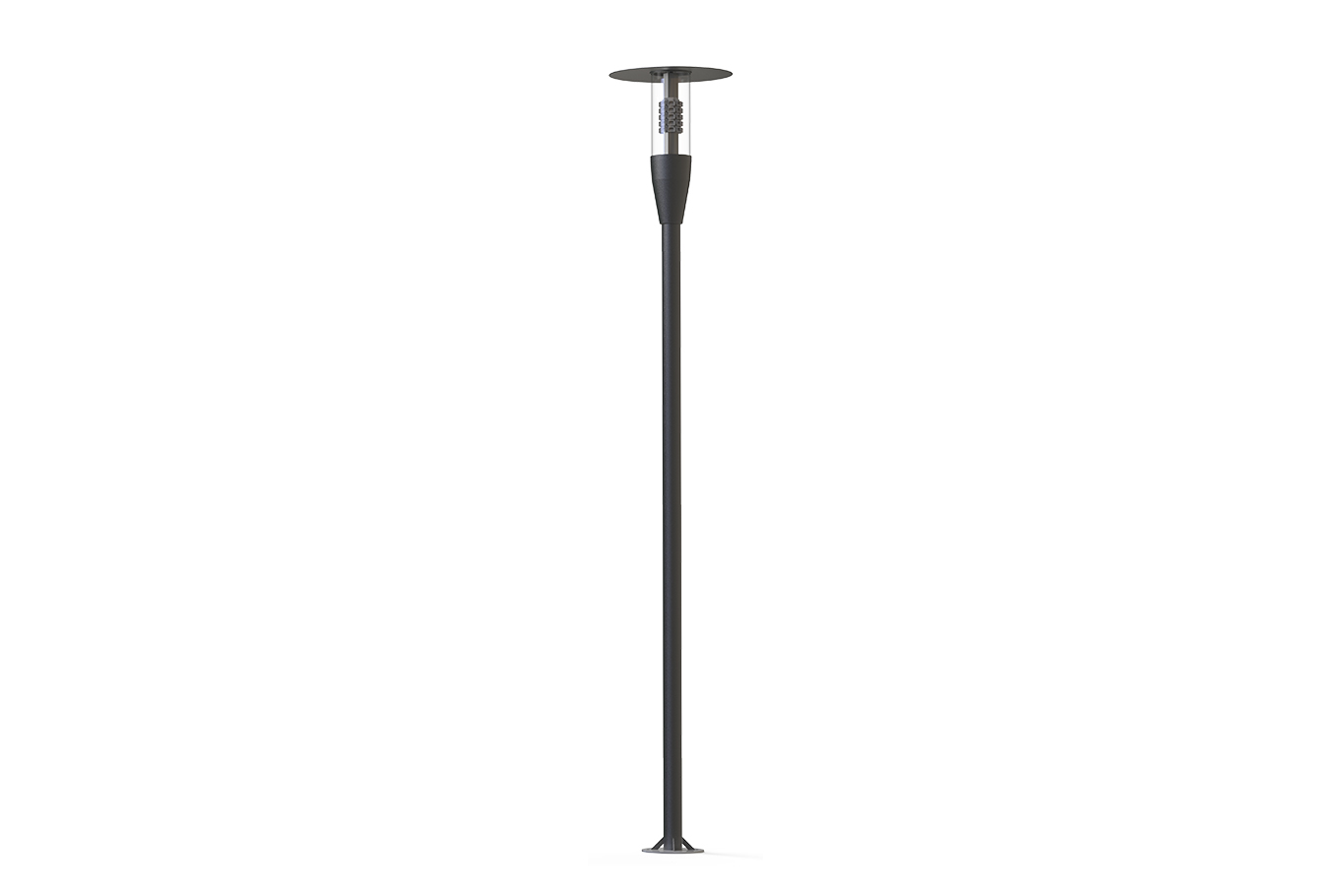

DORA LINEAR
APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Urban lights made of aluminium extrusion & die cast
Body pole aluminium extrusion
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6KV/4KV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

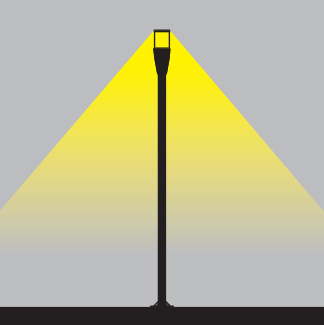

- Conformity mark.توزيع الضوء

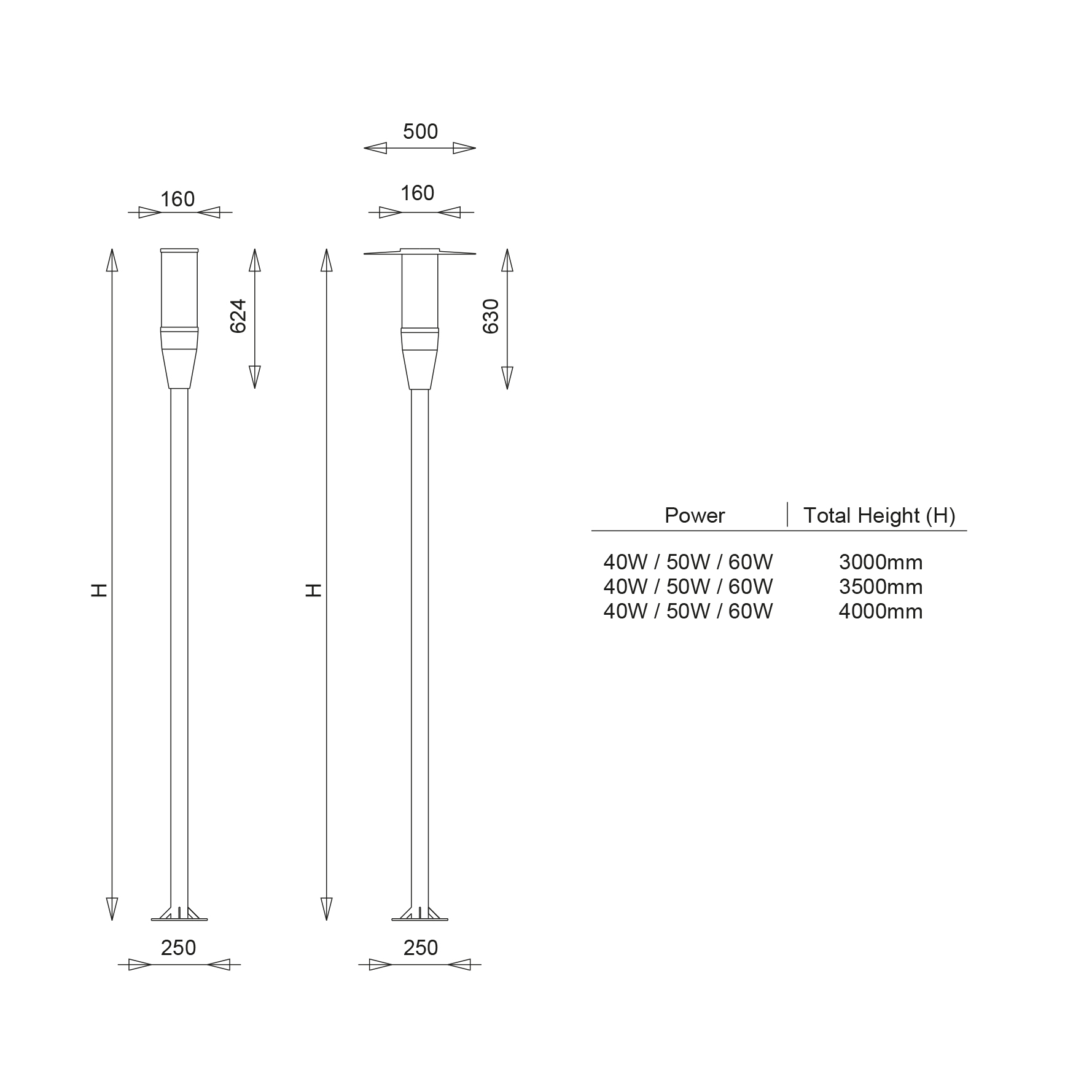

رسم تقنى
جدول الطلب
CODE
POWER
LUM. LUMINOUS FLUX
COLOR TEMPERATURE
HEIGHT
60-74-022-40-40-03-0-X
40W
5184lm - 5565lm
3000K-4000K
3m
60-74-022-40-40-035-0-X
40W
5184lm - 5565lm
3000K-4000K
3,5m
60-74-022-40-40-04-0-X
40W
5184lm - 5565lm
3000K-4000K
4m
60-74-022-50-40-03-0-X
50W
6282lm - 6729lm
3000K-4000K
3m
60-74-022-50-40-035-0-X
50W
6282lm - 6729lm
3000K-4000K
3,5m
60-74-022-50-40-04-0-X
50W
6282lm - 6729lm
3000K-4000K
4m
60-74-022-60-40-03-0-X
60W
7296lm - 7832lm
3000K-4000K
3m
60-74-022-60-40-035-0-X
60W
7296lm - 7832lm
3000K-4000K
3,5m
60-74-022-60-40-04-0-X
60W
7296lm - 7832lm
3000K-4000K
4m
X: Led Color
منحنيات الضوء
