DATA SHEETS
SURFACE MOUNT LUMINAIRES / DIO
DIO
APPLICATION
LED high-performance surface mounted with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Surface mounted made of aluminium die cast,
Aluminium and stainless steel.
Clear 3mm polycarbon glass
Silicon base seal gasket
Electrostatic powder coating.
Lens angle 8°- 15°- 25°- 36°- 60°
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 100 – 240V AC 50 / 60 Hz
Power factor > 87% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Operation temperature -25°C / +55°C
Weight: 0,49 kg
Complies with European standards
EN 60598 and CE certificate.

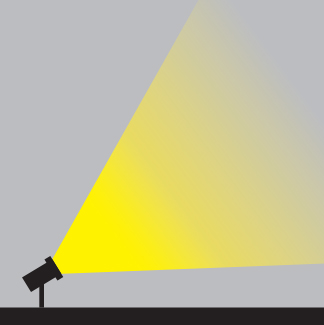

-- Conformity mark.LIGHT DISTRIBUTION

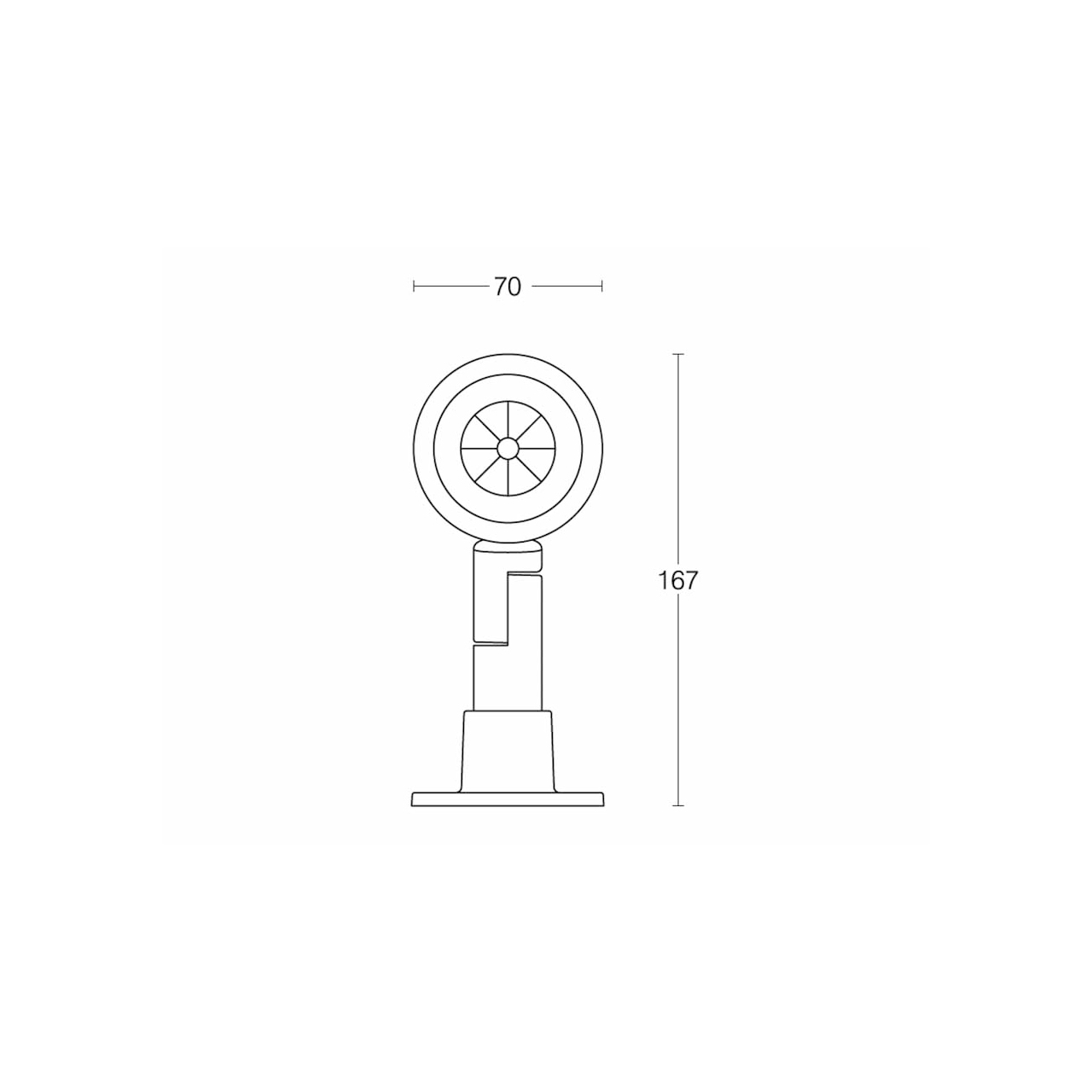

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
20-04-001-XX-X
1W
103lm - 108lm
3000K-4000K
20-04-003-XX-X
3W
270lm - 282lm
3000K-4000K
XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

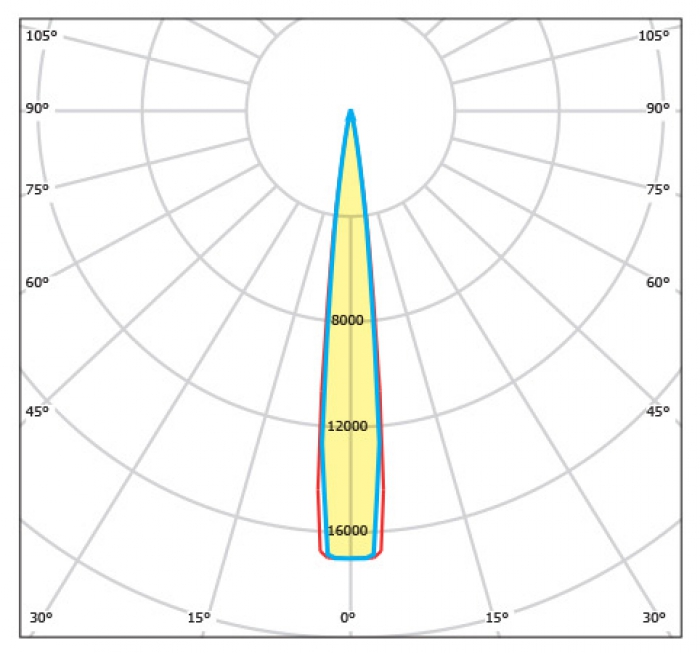

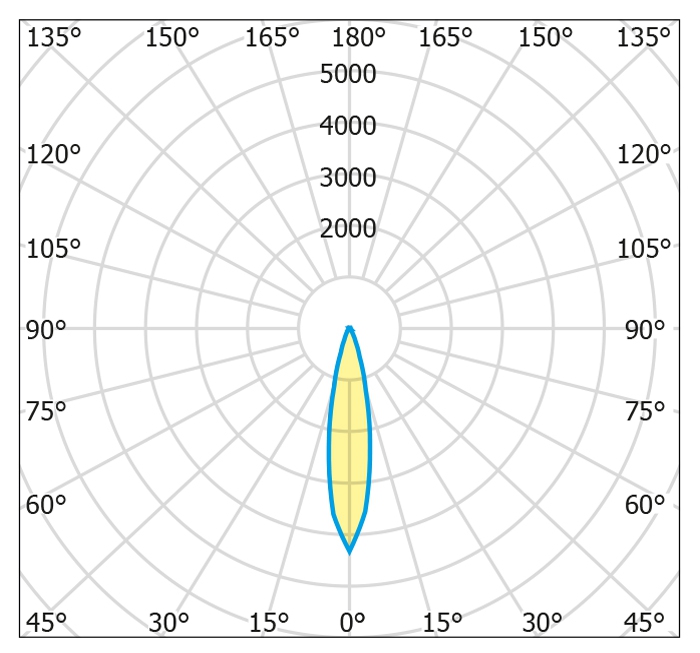

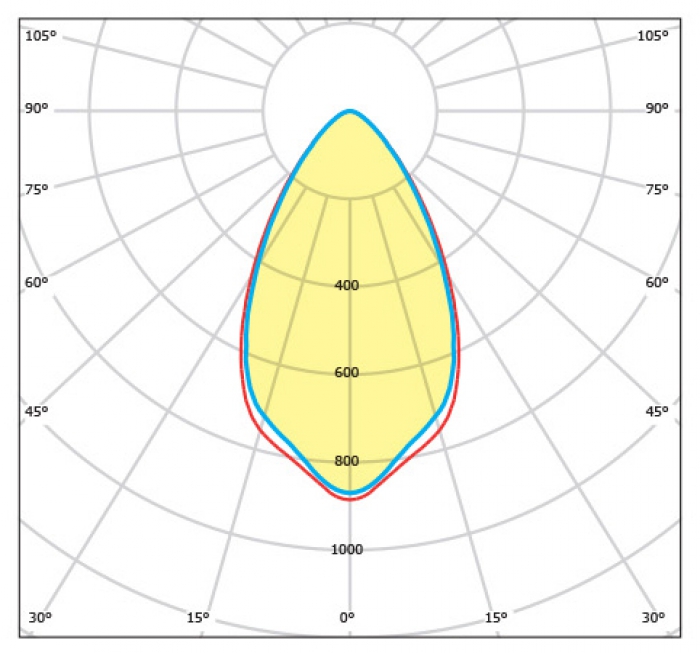

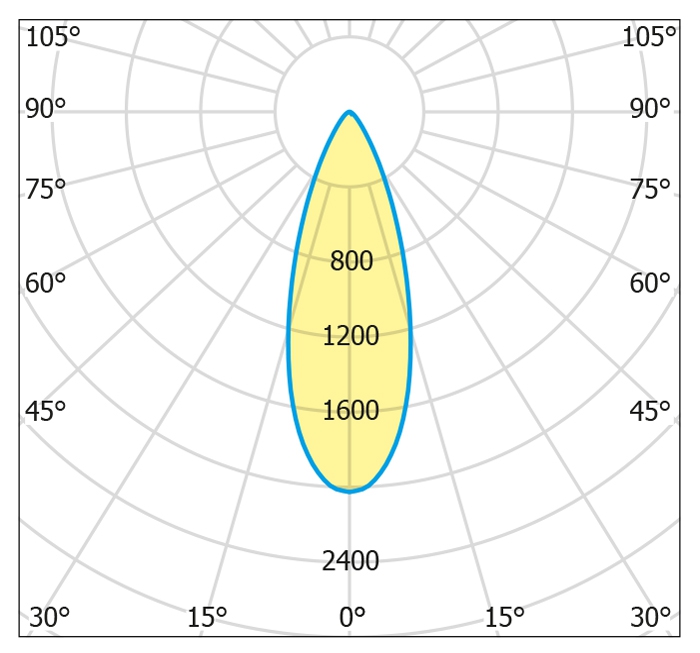

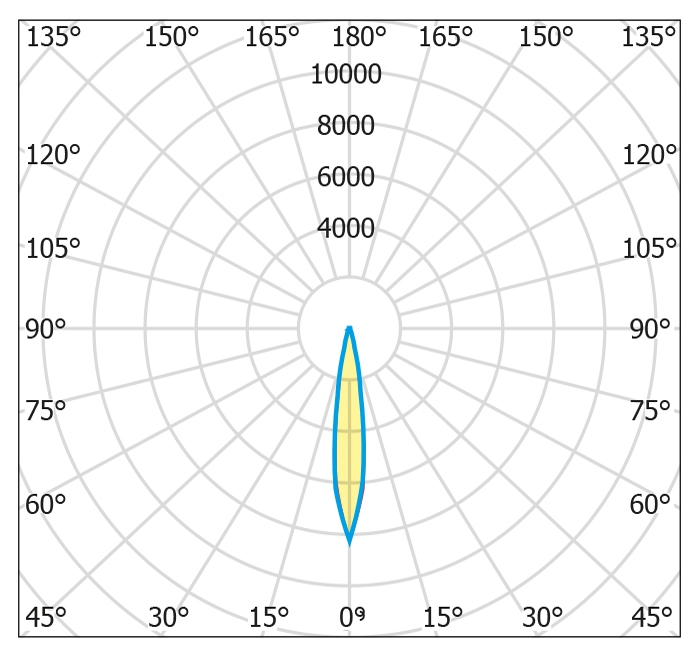

LIGHT CURVES
8°
15°
25°
36°
60°
