DATA SHEETS
CONTROLLERS / DMX512/RDM DECODER (RGB)
DMX512/RDM DECODER (RGB)
Product Description
| Input Voltage | 2-56 V DC |
| Output Current | 1050-9000 mA |
| Output Voltage | 2-52 V DC |
| Dimensions | 86x182x32 mm |
| Weight | 0,27 kg |
| Operation Temp. | -30°C +85°C |
| Protection class | IP20 |
| Housing Material | ABS |
| Input Signal | DMX512 / RDM |
| Certificate | CE |

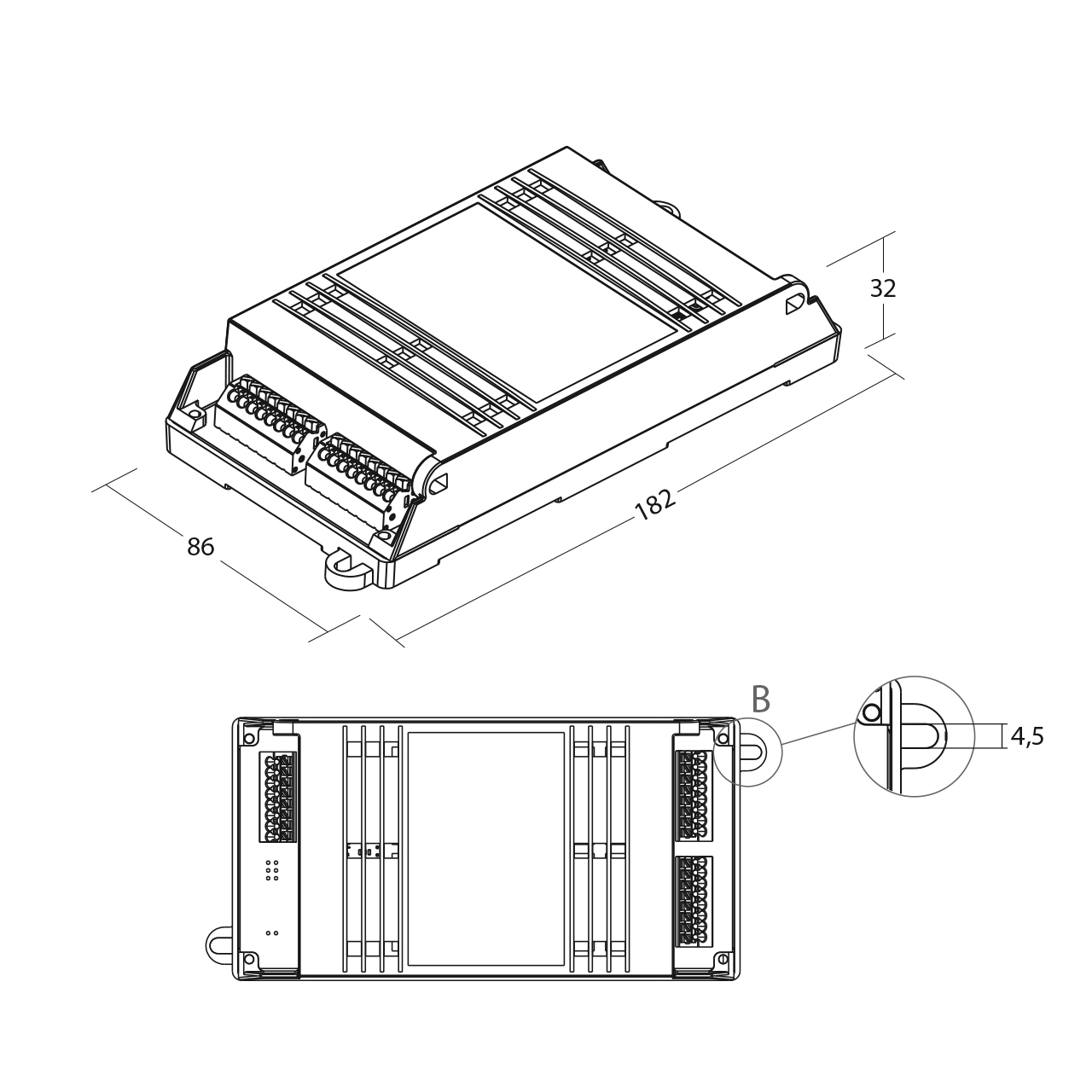

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
CHANNEL
CURRENT (Per Channel)
DMX512/RDM DECODER 3CH350
3 channel
350 mA
DMX512/RDM DECODER 3CH500
3 channel
500 mA
DMX512/RDM DECODER 3CH700
3 channel
700 mA
DMX512/RDM DECODER 3CH1000
3 channel
1000 mA
DMX512/RDM DECODER 3CH1500
3 channel
1500 mA
DMX512/RDM DECODER 23CH350
2x3 channel
350 mA
DMX512/RDM DECODER 23CH500
2x3 channel
500 mA
DMX512/RDM DECODER 23CH700
2x3 channel
700 mA
DMX512/RDM DECODER 23CH1000
2x3 channel
1000 mA
DMX512/RDM DECODER 23CH1500
2x3 channel
1500 mA
* Line 1 and Line 2 are selectable current.
