CANOPY LUMINAIRES / CANOPY V.2

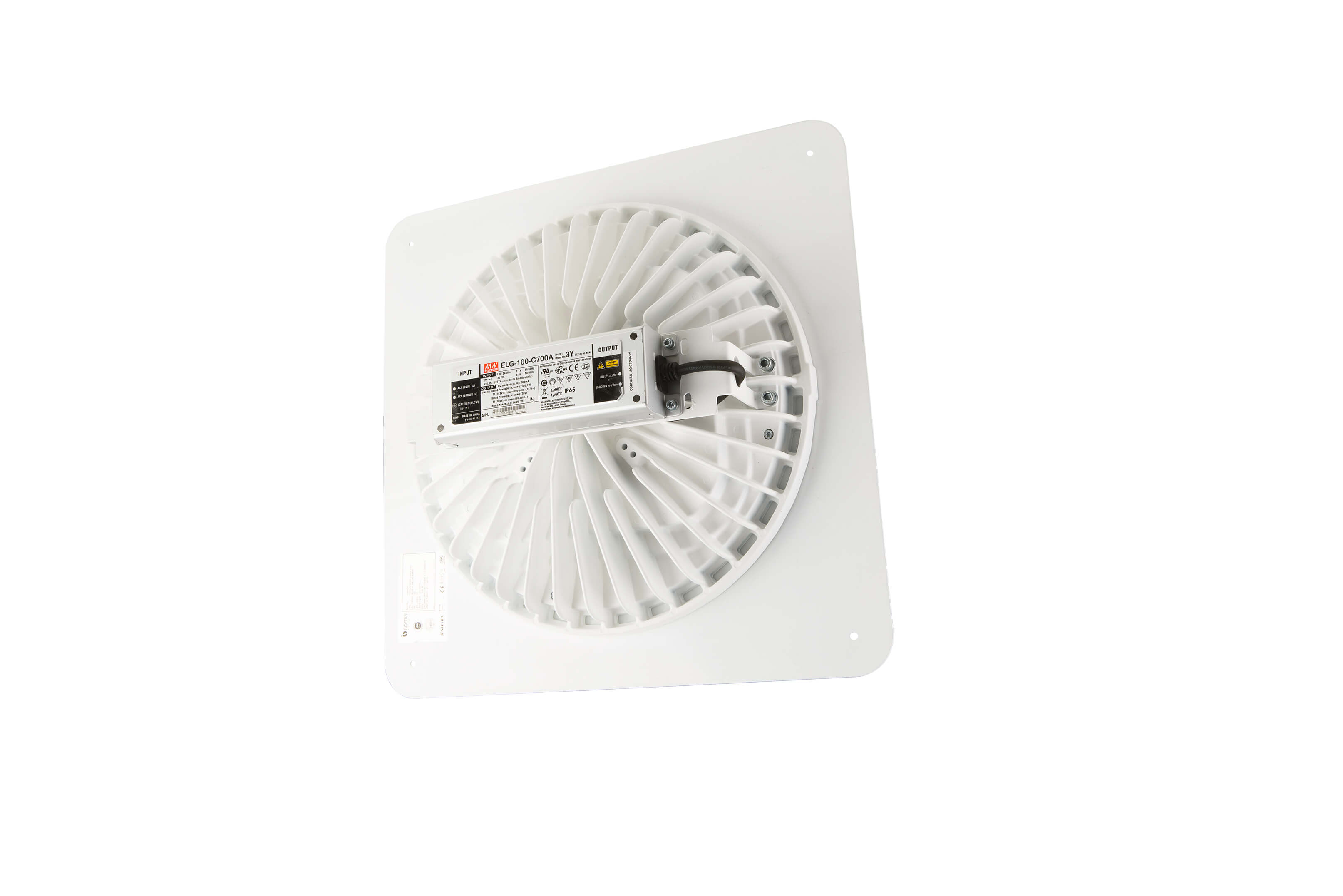

CANOPY V.2
APPLICATION
LED high-performance canopy with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
High-Bays made of aluminium die cast,
- Conformity mark.
Galvanized steel fittings.
Clear 5mm safety glass
Silicon rubber gasket
Mounting bracket made of steel
Electrostatic powder coating.
Lens angle 30°-40°-60°-90°-120°
Colour standard MT-X6-23
OptionalRAL codes.
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,08 m²
Weight: 7,6 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
- Conformity mark.LIGHT DISTRIBUTION

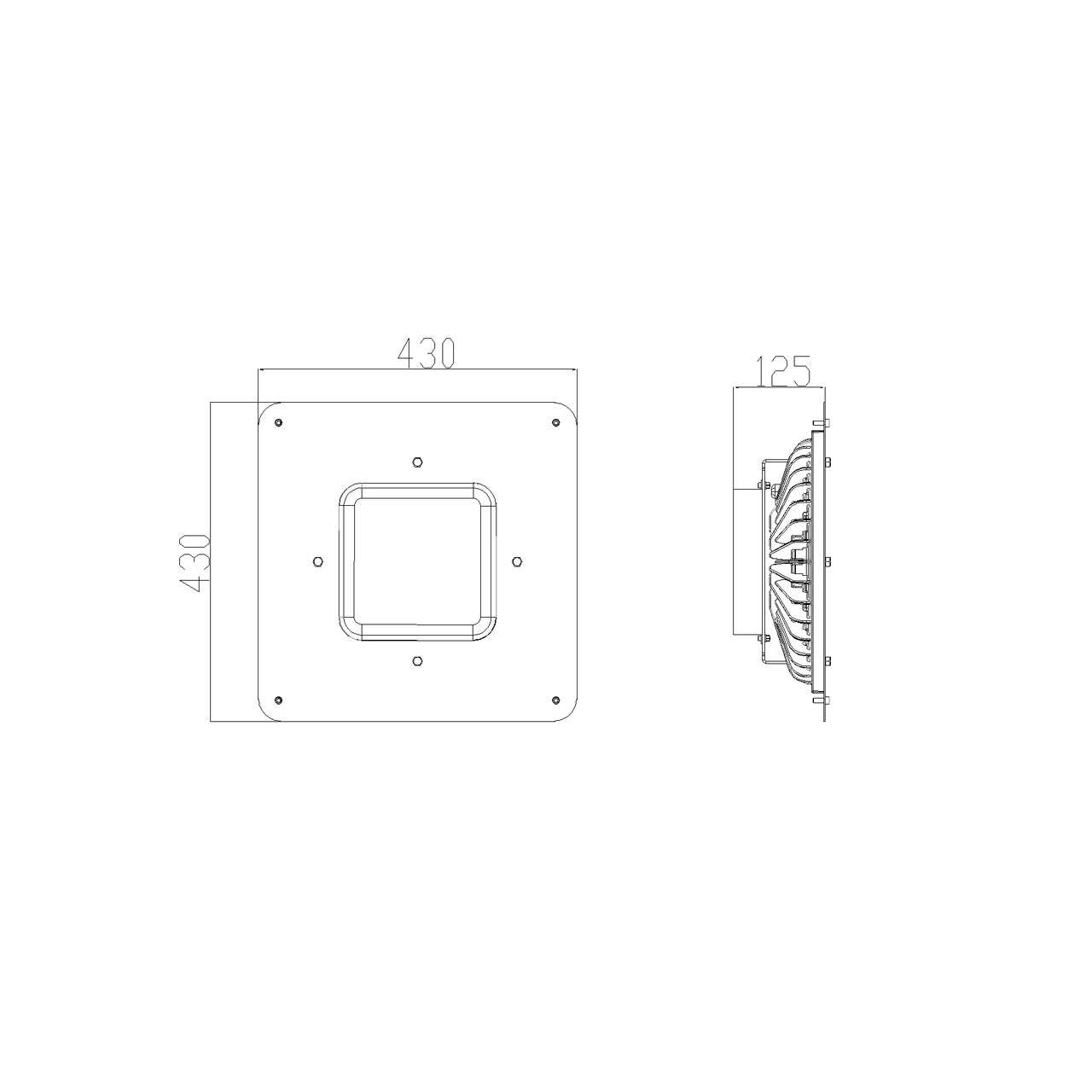

TECHNICAL DRAWING
PURCHASE ORDER TABLE
80-108 LED - STANDART LUMEN OUTPUT
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
81-01-45-80-XX-X
45W
6789lm - 7144lm
3000K-4000K
81-01-60-108-XX-X
60W
9072lm - 9546lm
3000K-4000K
81-01-90-80-XX-X
90W
11801lm - 12418lm
3000K-4000K
81-01-120-108-XX-X
120W
15373lm - 16177lm
3000K-4000K
136 LED - HIGH LUMEN OUTPUT
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
80-02-140-136-XX-X
140W
18337lm – 19295lm
3000K-4000K
XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.
LIGHT CURVES

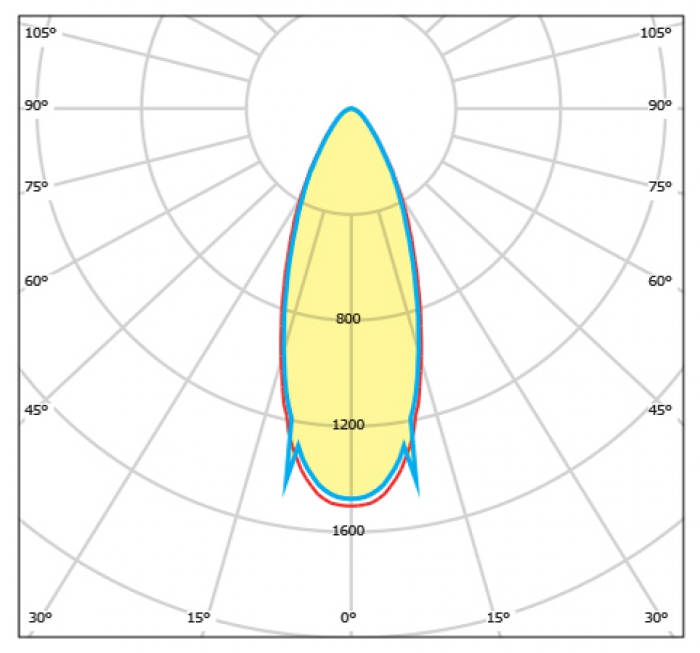

40°

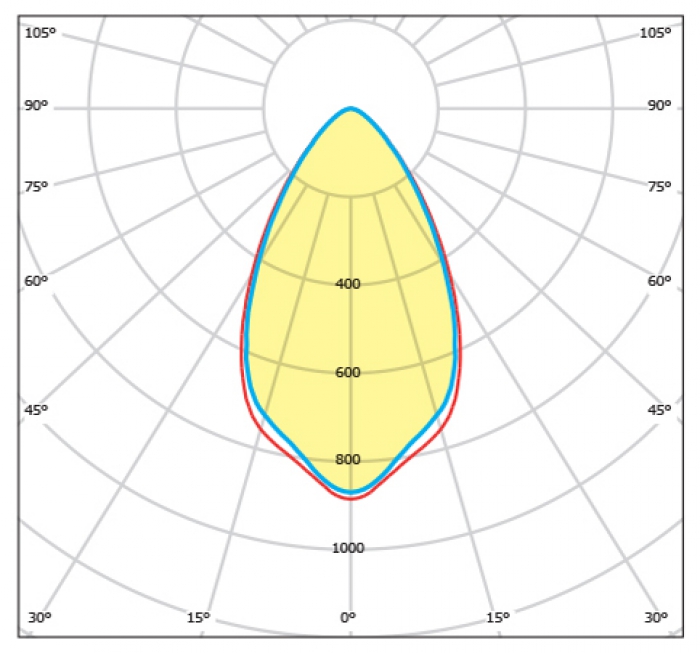

60°

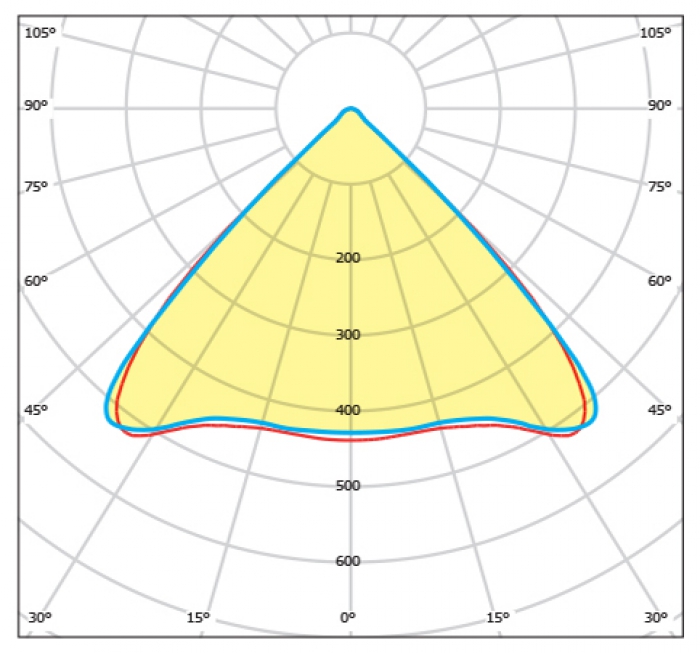

90°
