DATA SHEETS
WALLWASHERS / ARSEN AC TUNABLE
ARSEN AC TUNABLE
APPLICATION
LED high-performance wallwashers with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Wallwasher made of aluminium extrusion,
polyamide and stainless steel.
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 30°
Mounting bracket made of plastic.
Lens angle 18°- 25°- 30°x90°- 60°x110°- 90°x110°
Colour standard : Mat anodizied
Optional RAL codes.
LED power supply unit
Input 110 – 240V AC 50 / 60 Hz
Power factor > 90% full load
DALI or Bluetooth(optional) controllable
0-10V / 1-10V controllable (optional)
Tunable White PWM signal with RC (Standard)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,03 m²
Weight: 60cm: 1,2kg / 88,5cm: 1,7kg / 117cm: 2,2kg
Complies with European standards
EN 60598 and CE certificate.

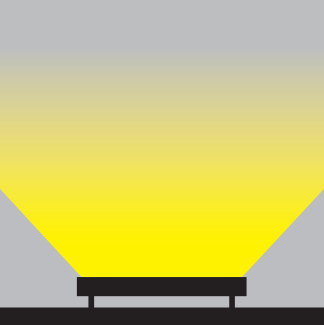

- Conformity mark.LIGHT DISTRIBUTION
TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
01-07-60-15-XX-TW
15W
2120lm
Tunable 2700K to 6500K
01-07-60-22-XX-TW
22W
2911lm
Tunable 2700K to 6500K
01-07-90-22-XX-TW
22W
3178lm
Tunable 2700K to 6500K
01-07-90-31-XX-TW
31W
4101lm
Tunable 2700K to 6500K
01-07-120-31-XX-TW
31W
4478lm
Tunable 2700K to 6500K
01-07-120-47-XX-TW
47W
6218lm
Tunable 2700K to 6500K
XX: Lens Angle

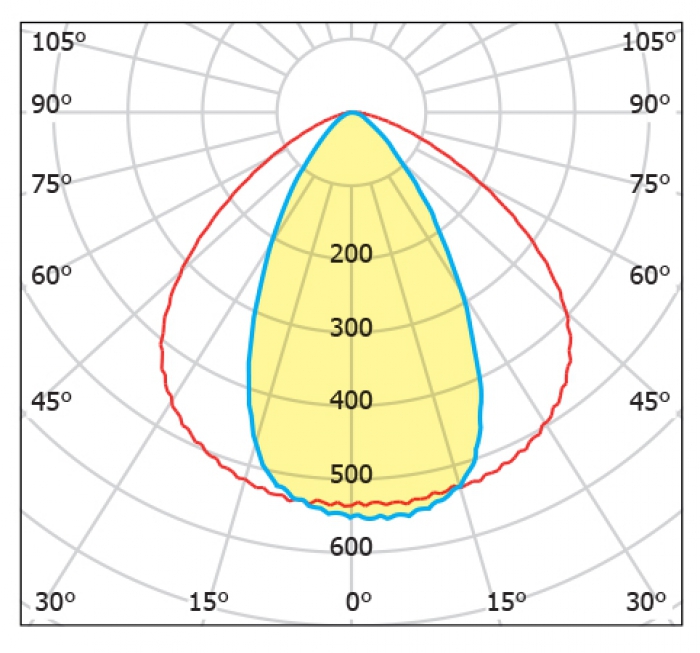

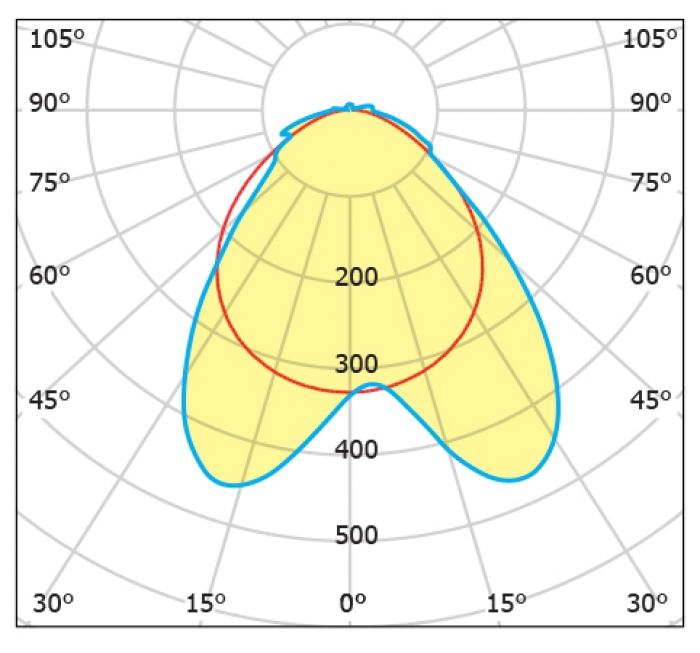

LIGHT CURVES
18°
25°
30x90°
60x110°
90x110°
