CEILING / ARGUS SQUARE
ARGUS SQUARE
APPLICATION
LED high-performance downlight with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Made of aluminium die cast and extrusion
Aluminium and stainless steel.
Clear 6mm safety glass
Silicon base seal gasket
Electrostatic powder coating.
Lens angle 8°-25°-45°-60°
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 90 – 264V AC 50 / 60 Hz
Power factor > 87% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP67
Impact strenght IK09
Operation temperature -25°C / +55°C
Weight: 3,27 kg
Complies with European standards
EN 60598 and CE certificate.

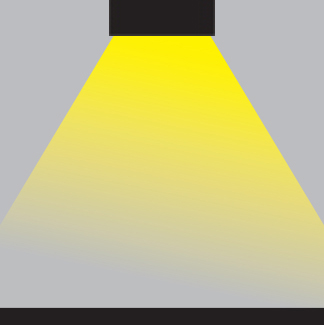

-- Conformity mark.LIGHT DISTRIBUTION

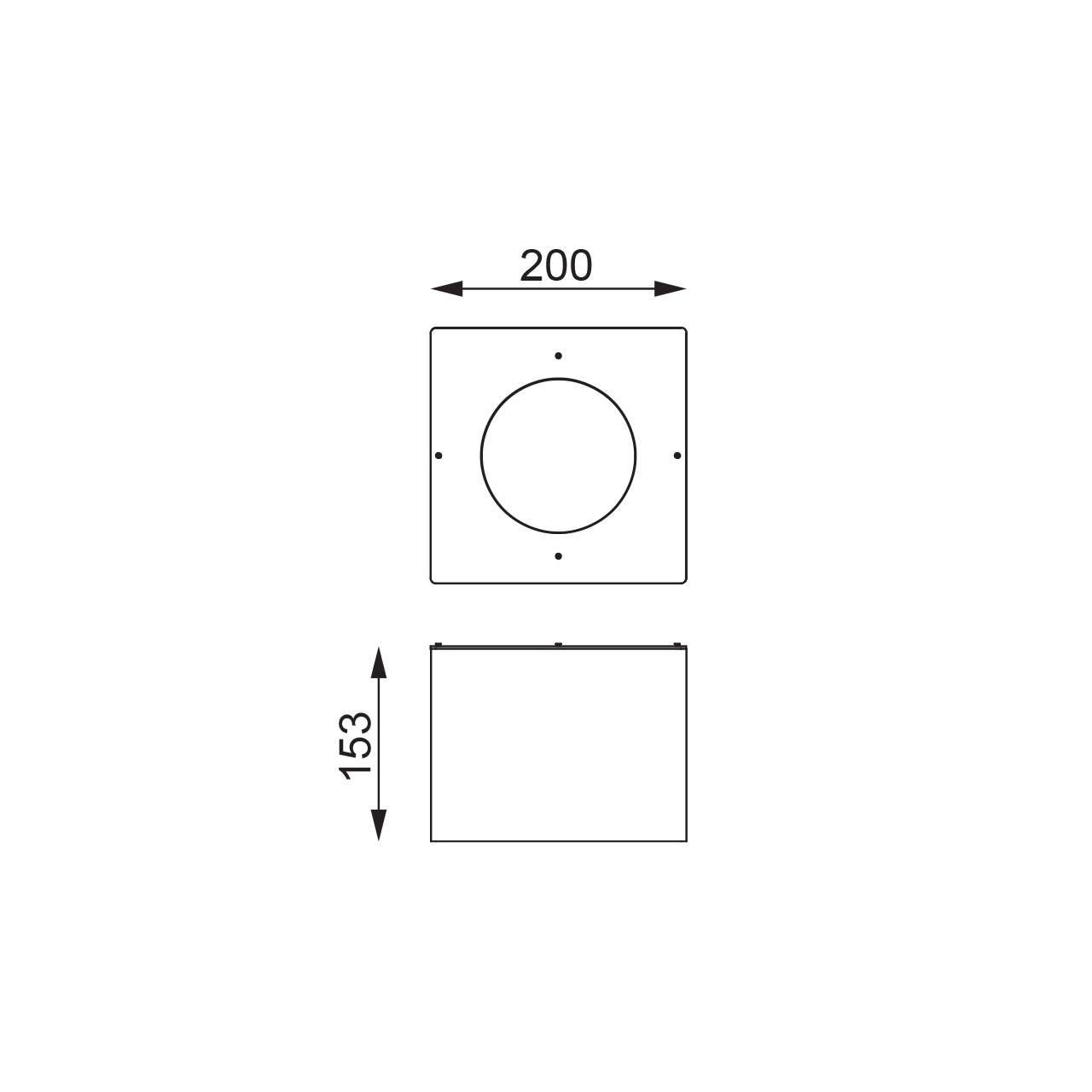

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
14-07-18-18-XX-X
18W
2046lm - 2152lm
3000K-4000K
14-07-25-18-XX-X
25W
2631lm - 2769lm
3000K-4000K
XX: Lens Angle , X: Led Color

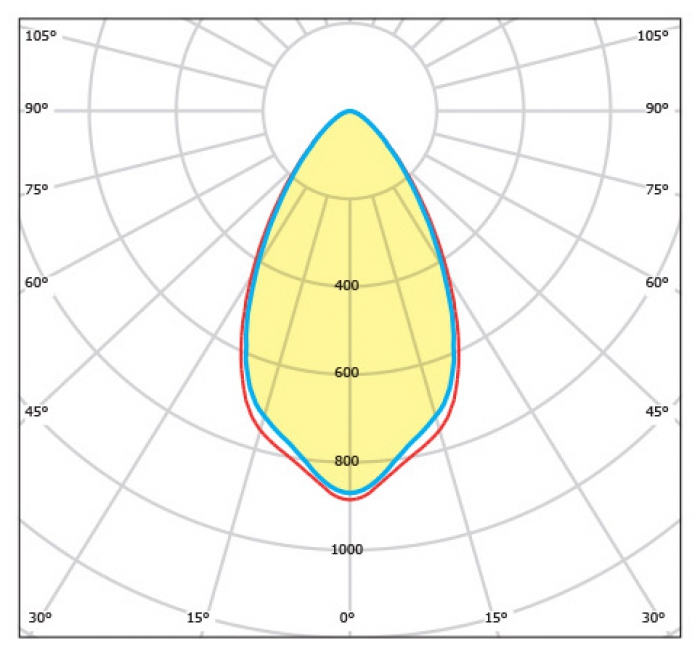

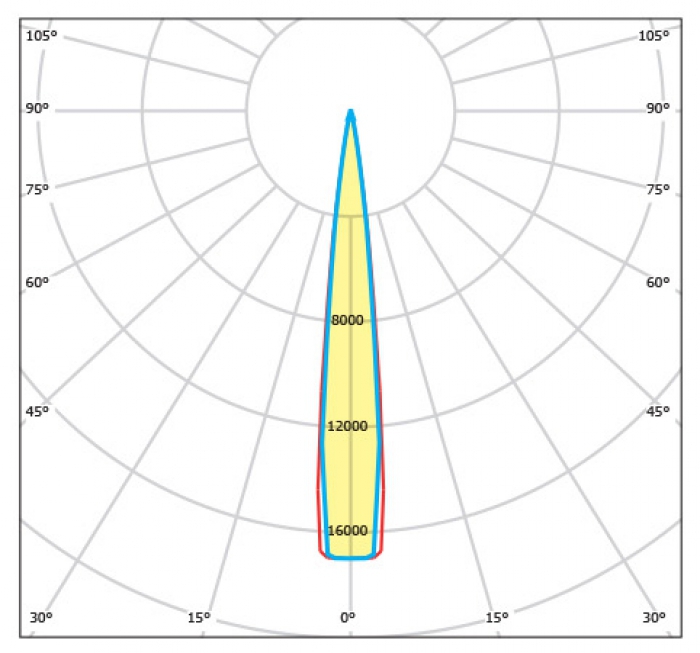

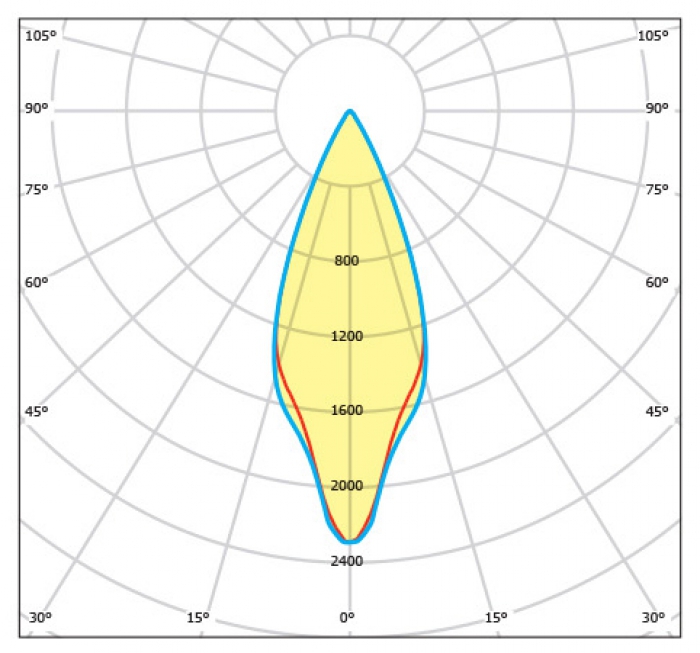

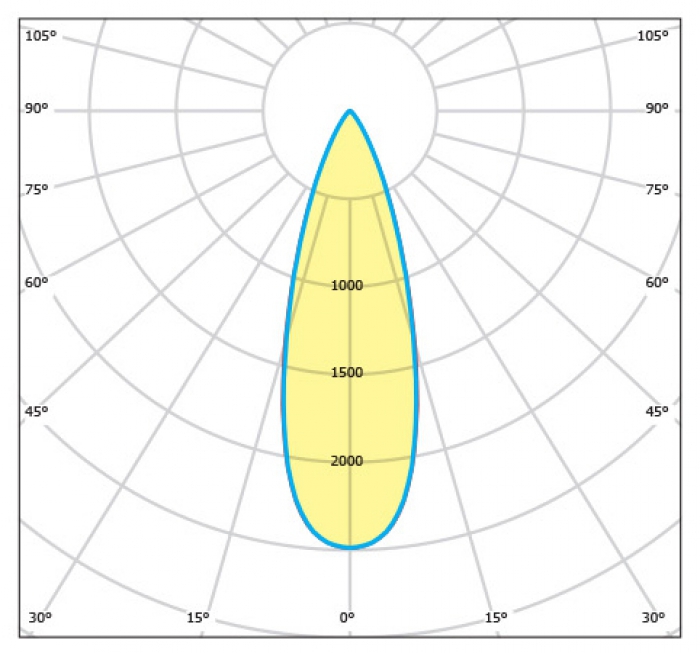

LIGHT CURVES
8°
25°
45°
60°
