AREA LIGHTING LUMINAIRES / PRIMUS PRL- 8 (FIXED)

PRIMUS PRL- 8 (FIXED)

Product Description

Housing material Aluminium extrusion
Lens material PMMA
Light distribution 15° - 40° - Asym
Input Voltage 100-305 V AC
Power factor (min.) 0.92
Dimmable (optional) 1-10V, DALI
Protection class IP66
Impact protection   IK09
Net weight  32 kg
Certificate EN 60598, CE

LIGHT DISTRIBUTION
PRIMUS PRL- 8 (FIXED)

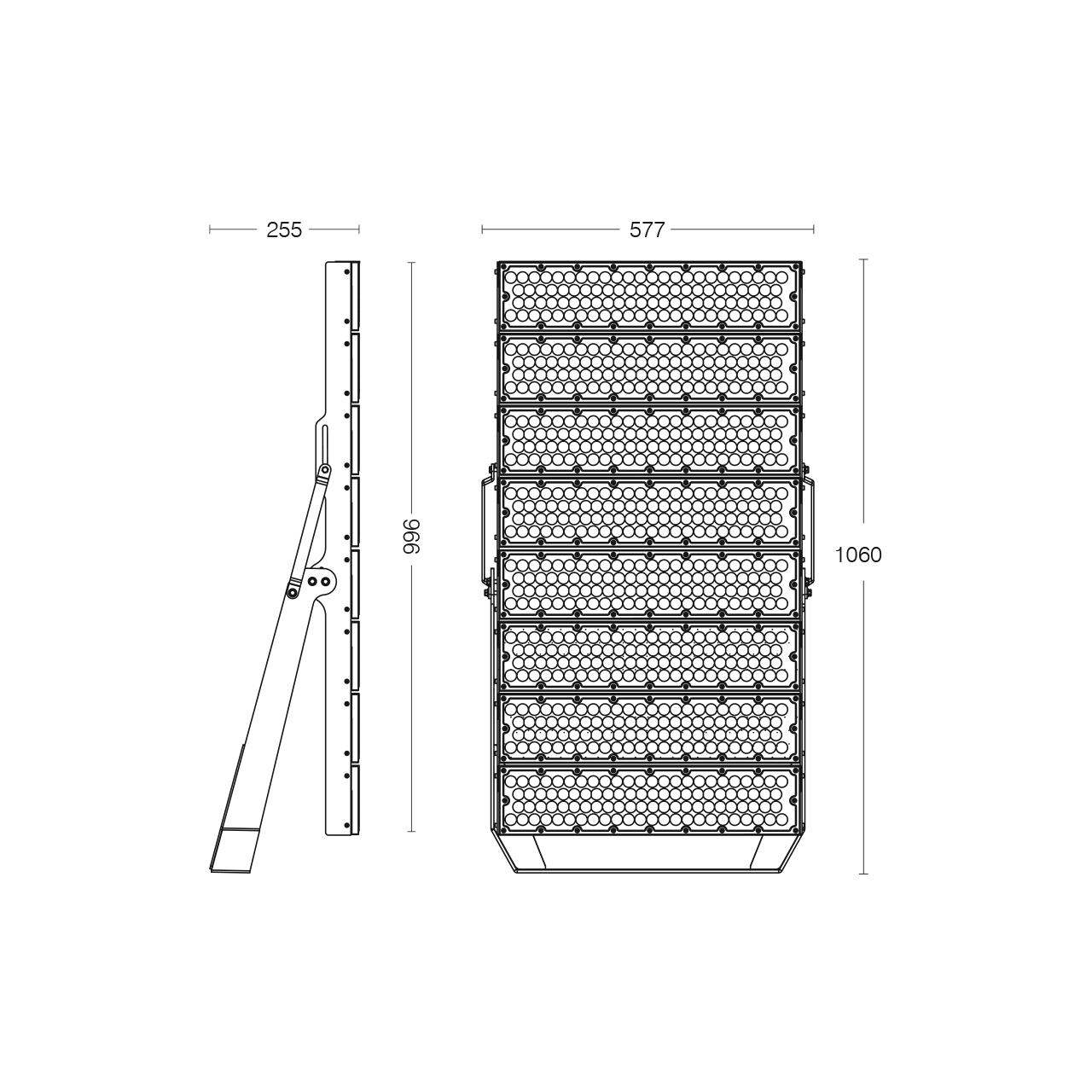

TECHNICAL DRAWING
DOWNLOADS
×
CATALOG PAGES
×
TECHNICAL DRAWING (AUTOCAD FILE)
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
STANDARD LUMEN OUTPUT (Beam angle options: 15°-40°-ASYM)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-31-800-768-XX-X
800W
132000lm - 136800lm
3000K-4000K

45-31-940-768-XX-X
940W
153220lm - 157920lm
3000K-4000K

SPORT ILLUMINATION (Beam angle options: 15°-40°-ASYM)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-38-800-768-XX-X
800W
83200lm
5700K

45-38-940-768-XX-X
940W
95880lm
5700K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

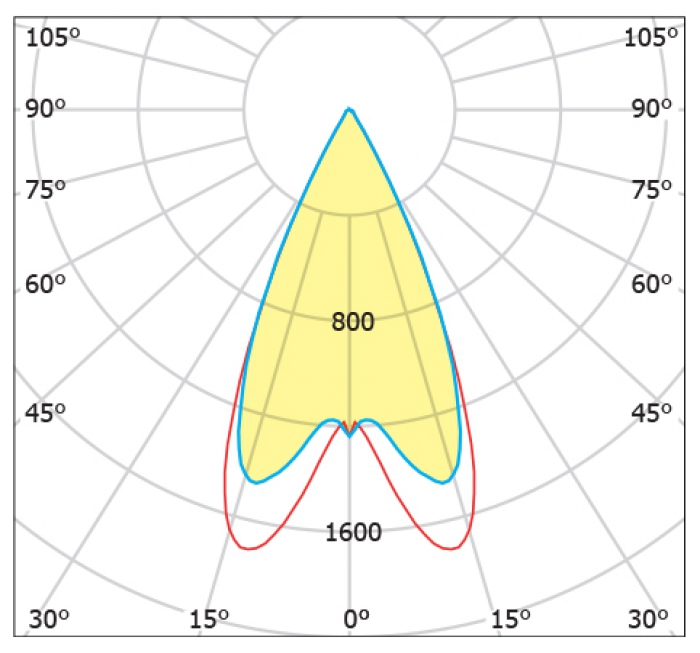

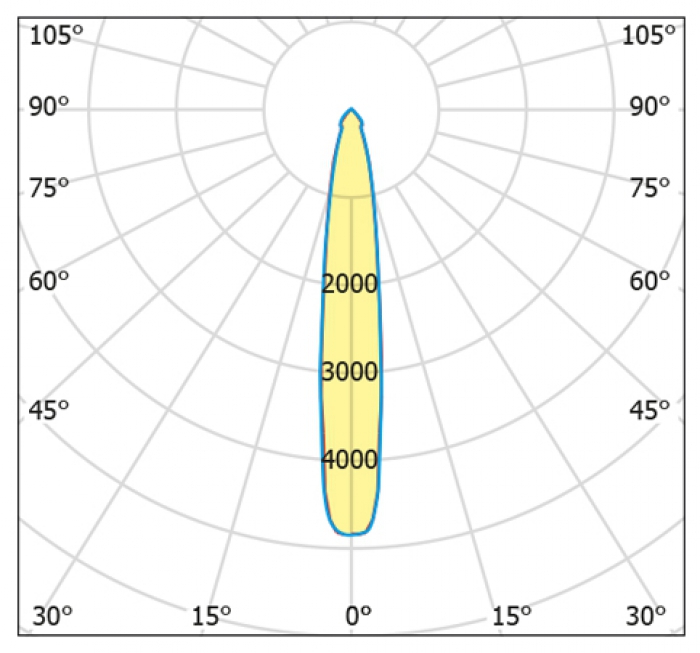

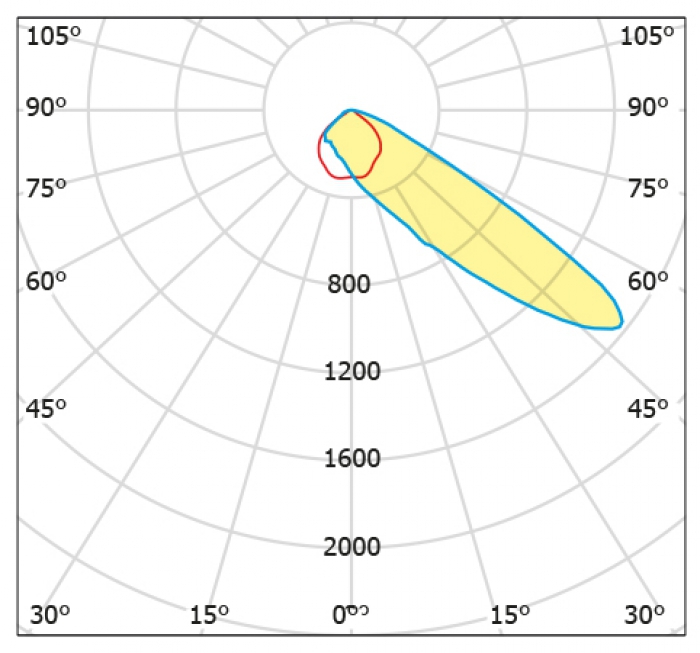

LIGHT CURVES
15°
40°
ASYM
40°(SPORT 4K)
