URBAN LIGHTING LUMINAIRES / APEX ROUND
APEX ROUND
APPLICATION
LED high-performance urban lights with Wide & Symmetric Beam light distribution
PRODUCT DESCRIPTION
Urban lights made of aluminium alloy & die cast
Body pole steel with electro galvanized
Diffuser 3mm policarbon glass
Silicon rubber gasket
Mounting detail anchor system
Bracket manufactured from steel
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100–305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

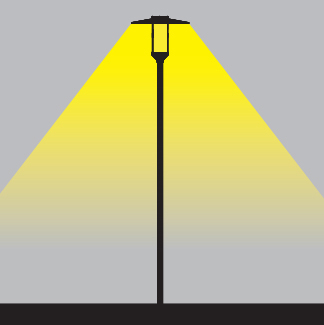

- Conformity mark.LIGHT DISTRIBUTION

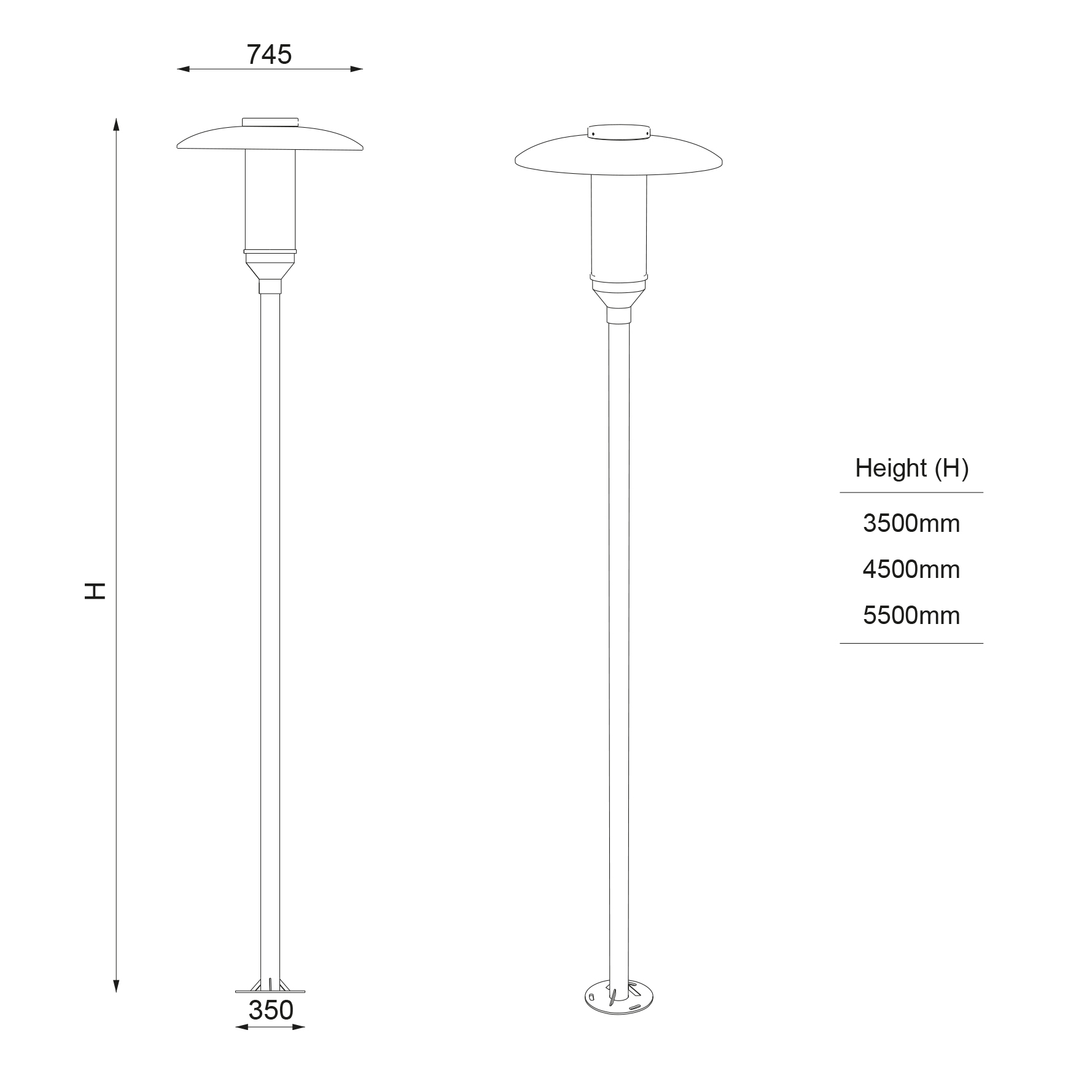

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUM. LUMINOUS FLUX
COLOR TEMPERATURE

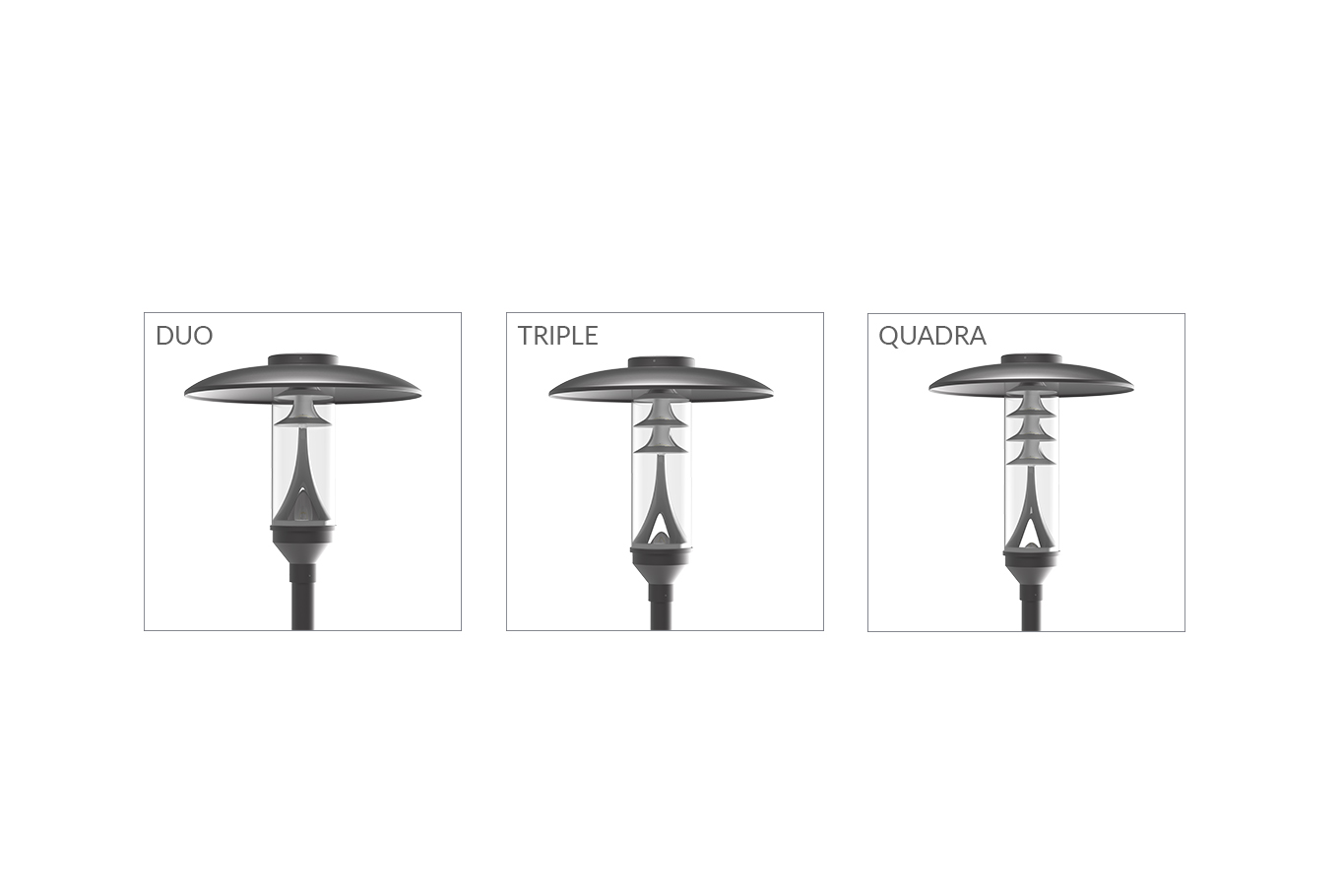

MODEL
60-51-01-40-144-035-120-X (2 MODULE)
40W
5760lm - 5960lm
3000K-4000K
APEX ROUND DUO
60-51-01-50-144-035-120-X (2 MODULE)
50W
6950lm - 7150lm
3000K-4000K
APEX ROUND DUO
60-51-01-60-216-045-120-X (3 MODULE)
60W
8520lm - 8820lm
3000K-4000K
APEX ROUND TRIPLE
60-51-01-75-216-045-120-X (3 MODULE)
75W
10275lm - 10575lm
3000K-4000K
APEX ROUND TRIPLE
60-51-01-80-288-055-120-X (4 MODULE)
80W
11232lm - 11605lm
3000K-4000K
APEX ROUND QUADRA
60-51-01-100-288-055-120-X (4 MODULE)
100W
13504lm - 13902lm
3000K-4000K
APEX ROUND QUADRA
X: Led Color
LIGHT CURVES
