URBAN LIGHTING LUMINAIRES / AMOR SIDE
AMOR SIDE
APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Urban lights made of aluminium / steel extrusion die cast
Body pole aluminium extrusion
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6KV/4KV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact resistance IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

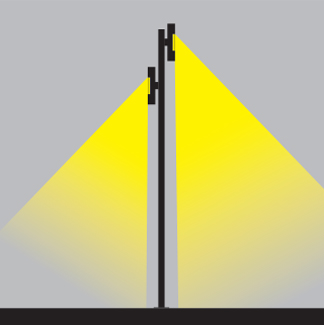

- Conformity mark.LIGHT DISTRIBUTION

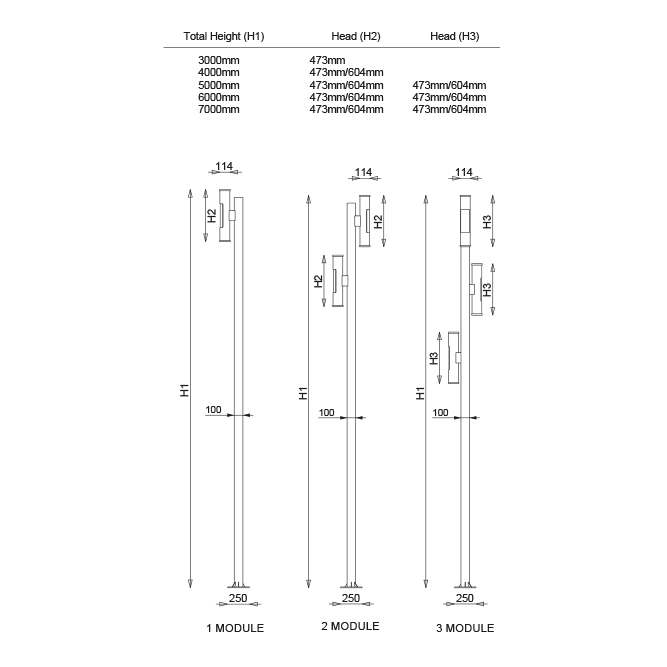

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUM. LUMINOUS FLUX
COLOR TEMP.
HEIGHT
60-74-032-01-03-15-15-X-XX (3 ROW 443MM)
15W
2030lm - 2180lm
3000K-4000K
3-4-5-6-7m
60-74-032-01-03-30-15-X-XX (3 ROW 443MM)
30W
3715lm - 3988lm
3000K-4000K
3-4-5-6-7m
60-74-032-01-03-45-15-X-XX (3 ROW 443MM)
45W
5170lm - 5550lm
3000K-4000K
3-4-5-6-7m
60-74-032-02-03-30-30-X-XX (3 ROW 443MM DUO)
15+15W
(2 x 2030lm) - (2 x 2180lm)
3000K-4000K
3-4-5-6-7m
60-74-032-02-03-60-30-X-XX (3 ROW 443MM DUO)
30+30W
(2 x 3715lm) - (2 x 3988lm)
3000K-4000K
3-4-5-6-7m
60-74-032-02-03-90-30-X-XX (3 ROW 443MM DUO)
45+45W
(2 x 5170lm) - (2 x 5550lm)
3000K-4000K
3-4-5-6-7m
60-74-032-03-03-45-45-X-XX (3 ROW 443MM TRIPLE)
15+15+15W
(3 x 2030lm) - (3 x 2180lm)
3000K-4000K
5-6-7m
60-74-032-03-03-90-45-X-XX (3 ROW 443MM TRIPLE)
30+30+30W
(3 x 3715lm) - (3 x 3988lm)
3000K-4000K
5-6-7m
60-74-032-03-03-135-45-X-XX (3 ROW 443MM TRIPLE)
45+45+45W
(3 x 5170lm) - (3 x 5550lm)
3000K-4000K
5-6-7m
60-74-032-01-03-30-30-X-XX (3 ROW 604MM)
30W
(4020lm) - (4315lm)
3000K-4000K
4-5-6-7m
60-74-032-01-03-40-30-X-XX (3 ROW 604MM)
40W
(5189lm) - (5571lm)
3000K-4000K
4-5-6-7m
60-74-032-01-03-50-30-X-XX (3 ROW 604MM)
50W
(6286lm) - (6748lm)
3000K-4000K
4-5-6-7m
60-74-032-02-03-60-60-X-XX (3 ROW 604MM DUO)
30+30W
(2 x 4020lm) - (2 x 4315lm)
3000K-4000K
4-5-6-7m
60-74-032-02-03-80-60-X-XX (3 ROW 604MM DUO)
40+40W
(2 x 5189lm) - (2 x 5571lm)
3000K-4000K
4-5-6-7m
60-74-032-02-03-100-60-X-XX (3 ROW 604MM DUO)
50+50W
(2 x 6286lm) - (2 x 6748lm)
3000K-4000K
4-5-6-7m
60-74-032-03-03-90-90-X-XX (3 ROW 604MM TRIPLE)
30+30+30W
(3 x 4020lm) - (3 x 4315lm)
3000K-4000K
5-6-7m
60-74-032-03-03-120-90-X-XX (3 ROW 604MM TRIPLE)
40+40+40W
(3 x 5189lm) - (3 x 5571lm)
3000K-4000K
5-6-7m
60-74-032-03-03-150-90-X-XX (3 ROW 604MM TRIPLE)
50+50+50W
(3 x 6286lm) - (3 x 6748lm)
3000K-4000K
5-6-7m
X: Pole Height, XX: Led Color

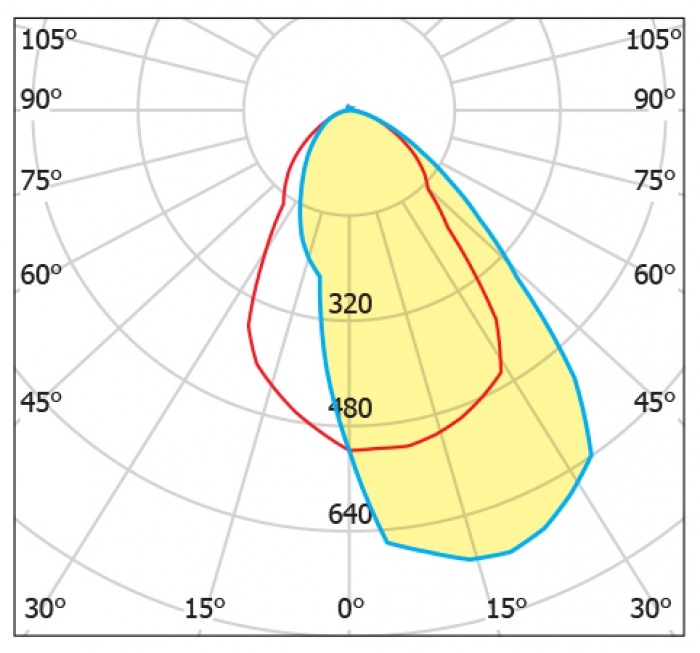

LIGHT CURVES
